SIR - Revised Code 42 Chart

9214chevy01

Number: 90-229-9

Section: 9

Date: April 1990

Corporate Bulletin No.: 019005


Subject: SUPPLEMENTAL INFLATABLE RESTRAINT/REVISED CODE 42 CHART


Model and Year: 1990 Y CAR


TO: ALL CHEVROLET DEALERS

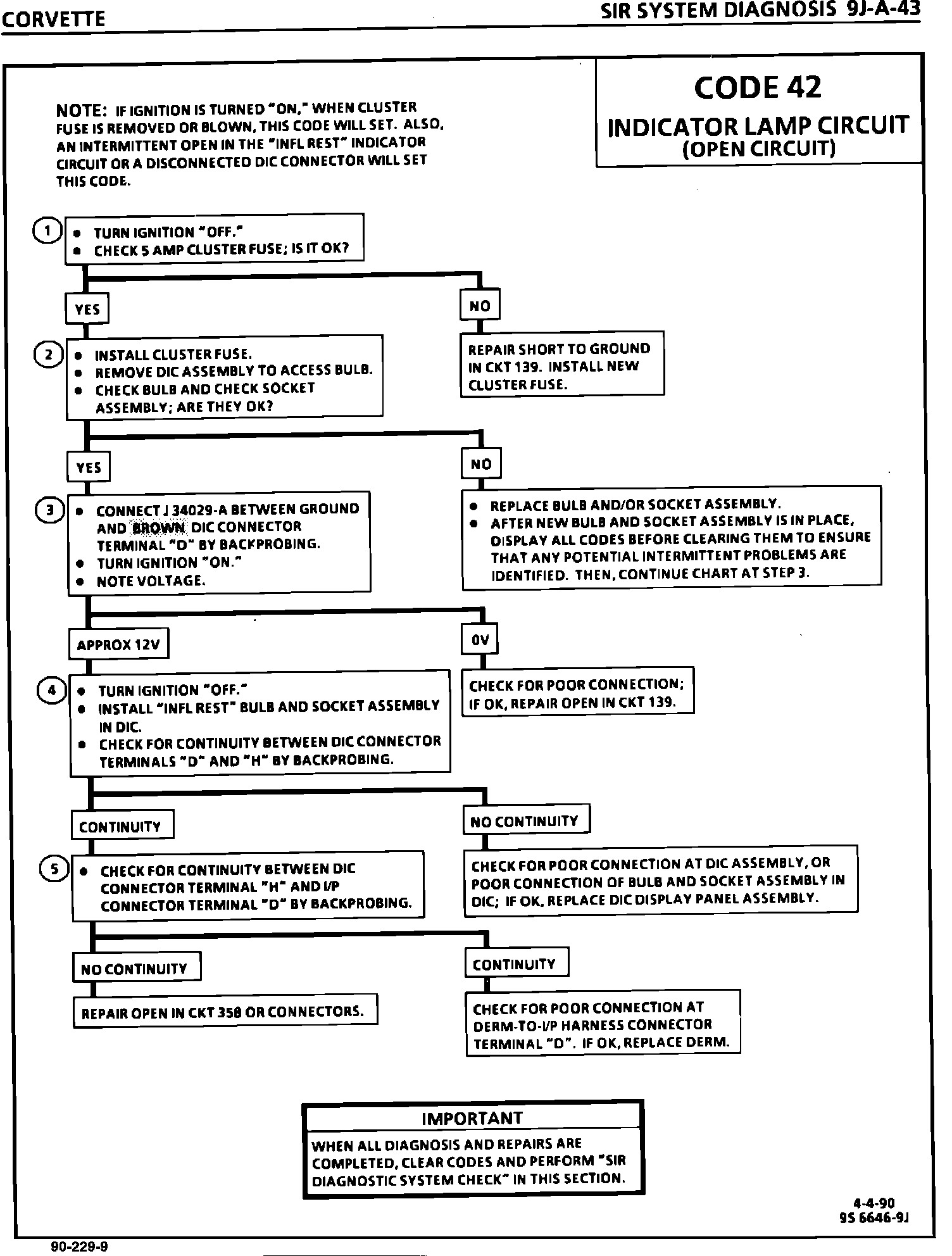

This bulletin serves to revise the Code 42 Chart on page 9J-A-43 in Section 9J-A "Supplemental Inflatable Restraint" in the 1990 "Y" Service Manual.





The blue connector referenced in the chart, step 3, should be a brown connector.
