Home >> Chevrolet >> 1990 >> K 2500 Truck 4WD V8-305 5.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> Malfunction Indicator Lamp >> Part 1 of 2

Part 1 of 2

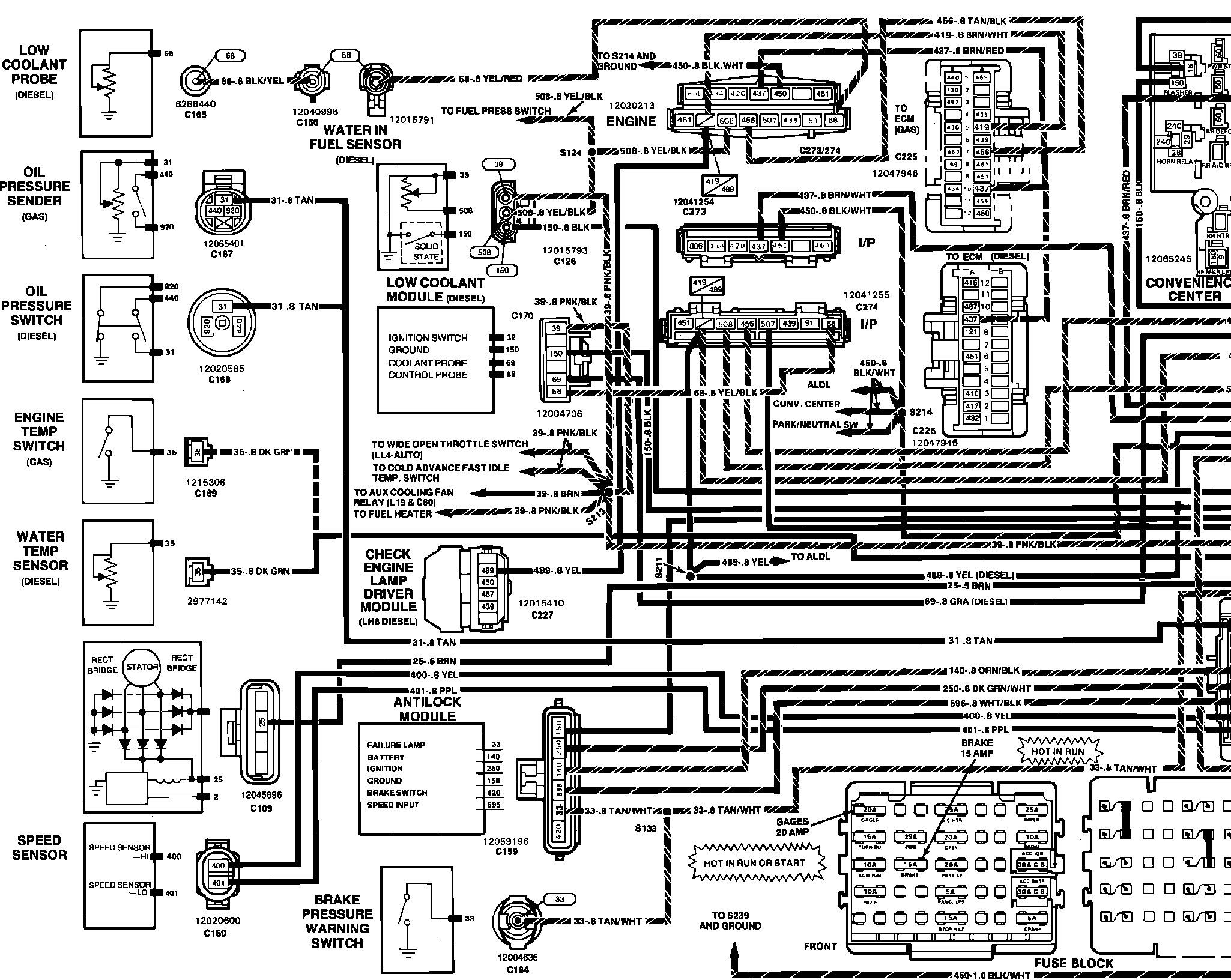

2��Instrument Panel: Indicator Lamps:
