Home >> Chevrolet >> 1990 >> K 2500 Truck 4WD V8-305 5.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> Hazard Warning Lamps >> Warning Indicators >> Part 2 of 2

Part 2 of 2

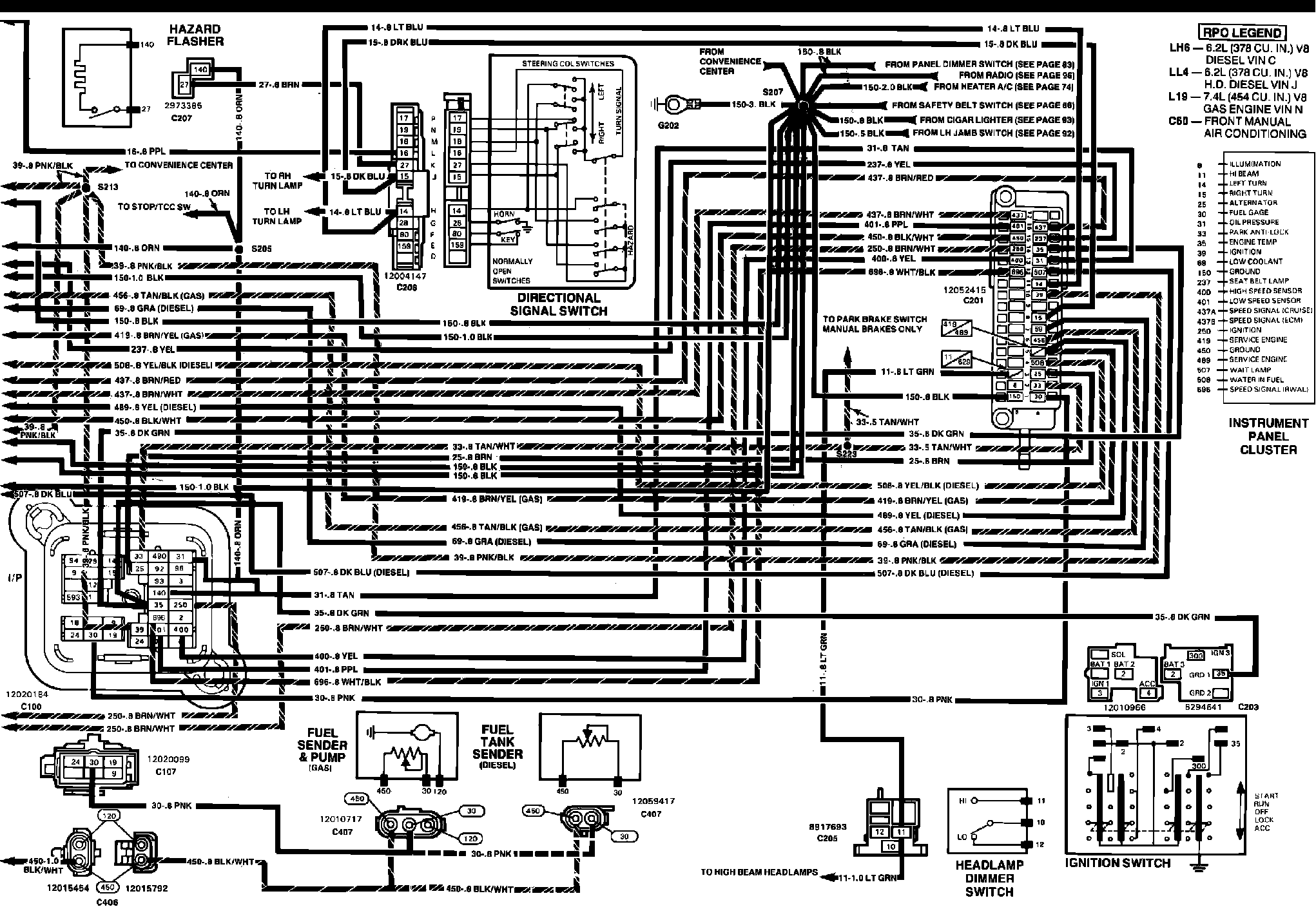

Instrument Panel: Indicator Lamps:
