Home >> Chevrolet >> 1990 >> K 2500 Truck 4WD V8-305 5.0L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> Transfer Case Controls

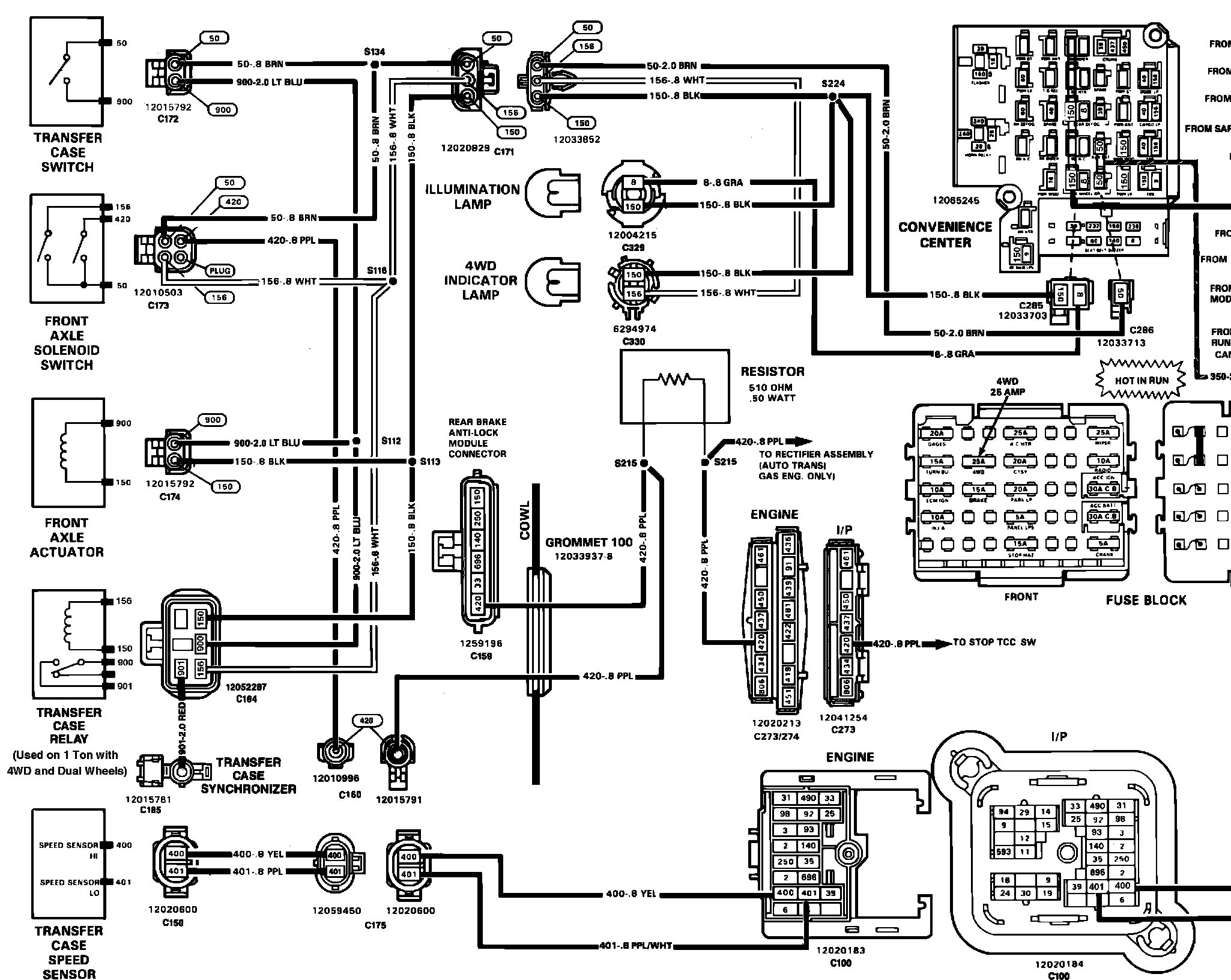

Transfer Case Controls

p��%Four Wheel Drive:
