Camaro Z28 V8-305 5.0L VIN F FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
Engine Control Module

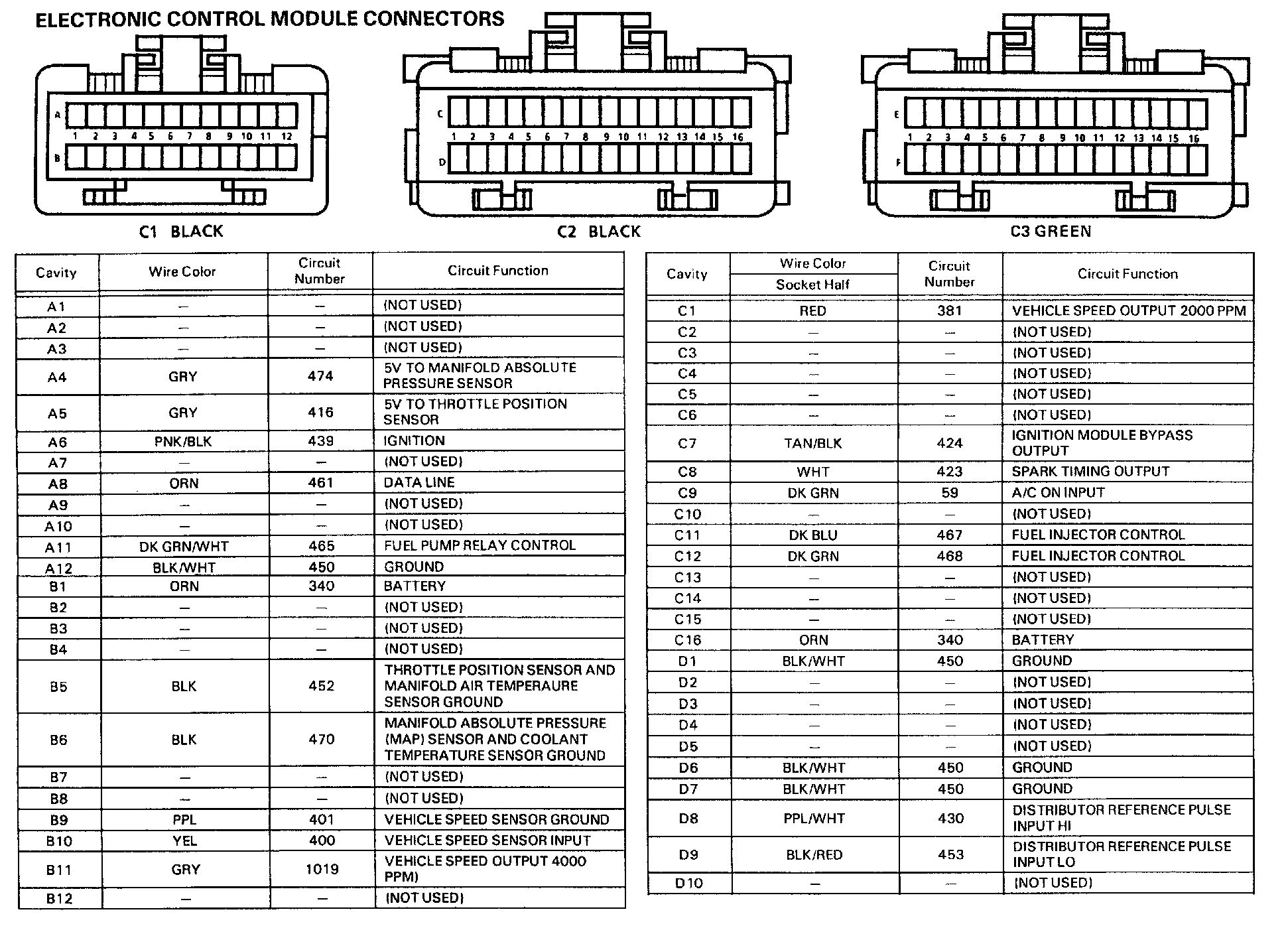

ECM Connectors:

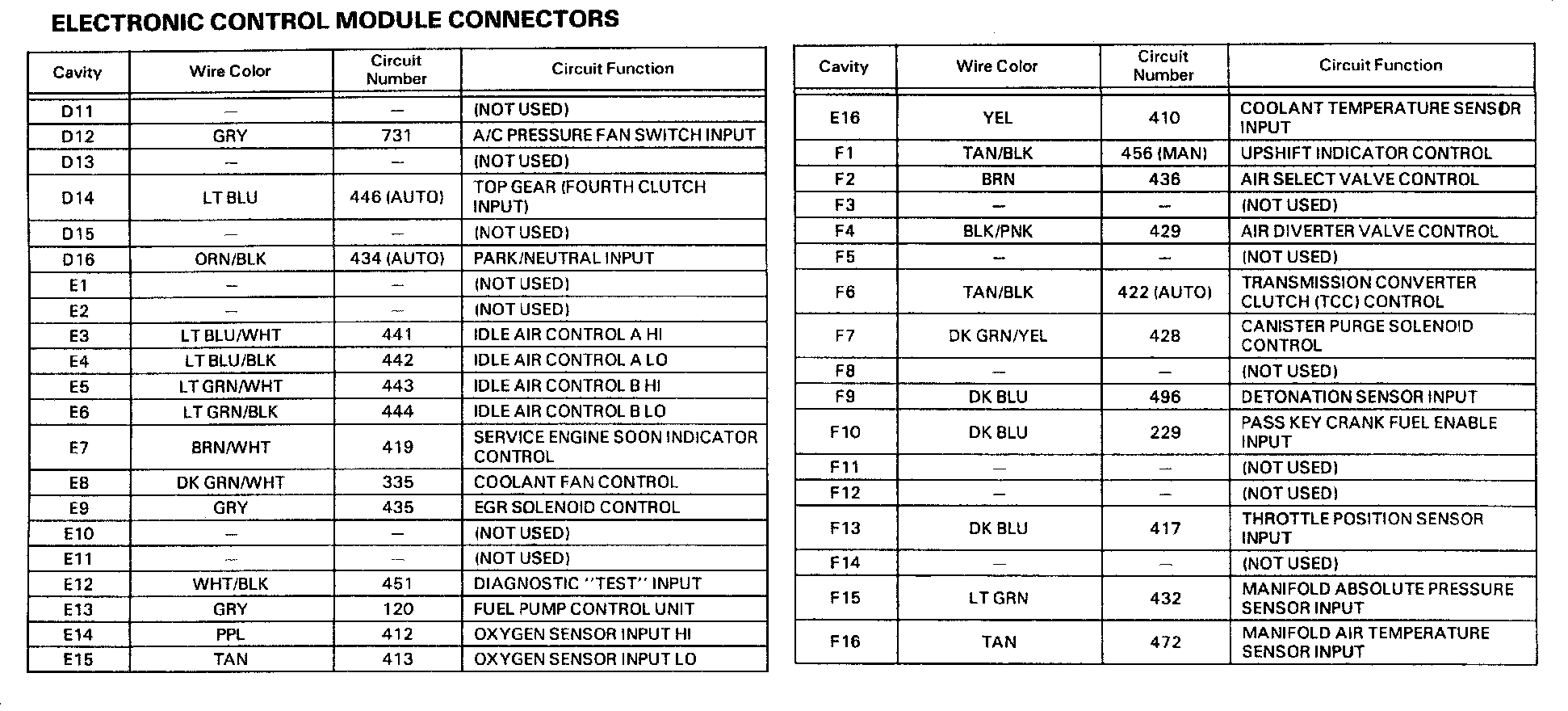

ECM Connectors:
