Compressor Controls

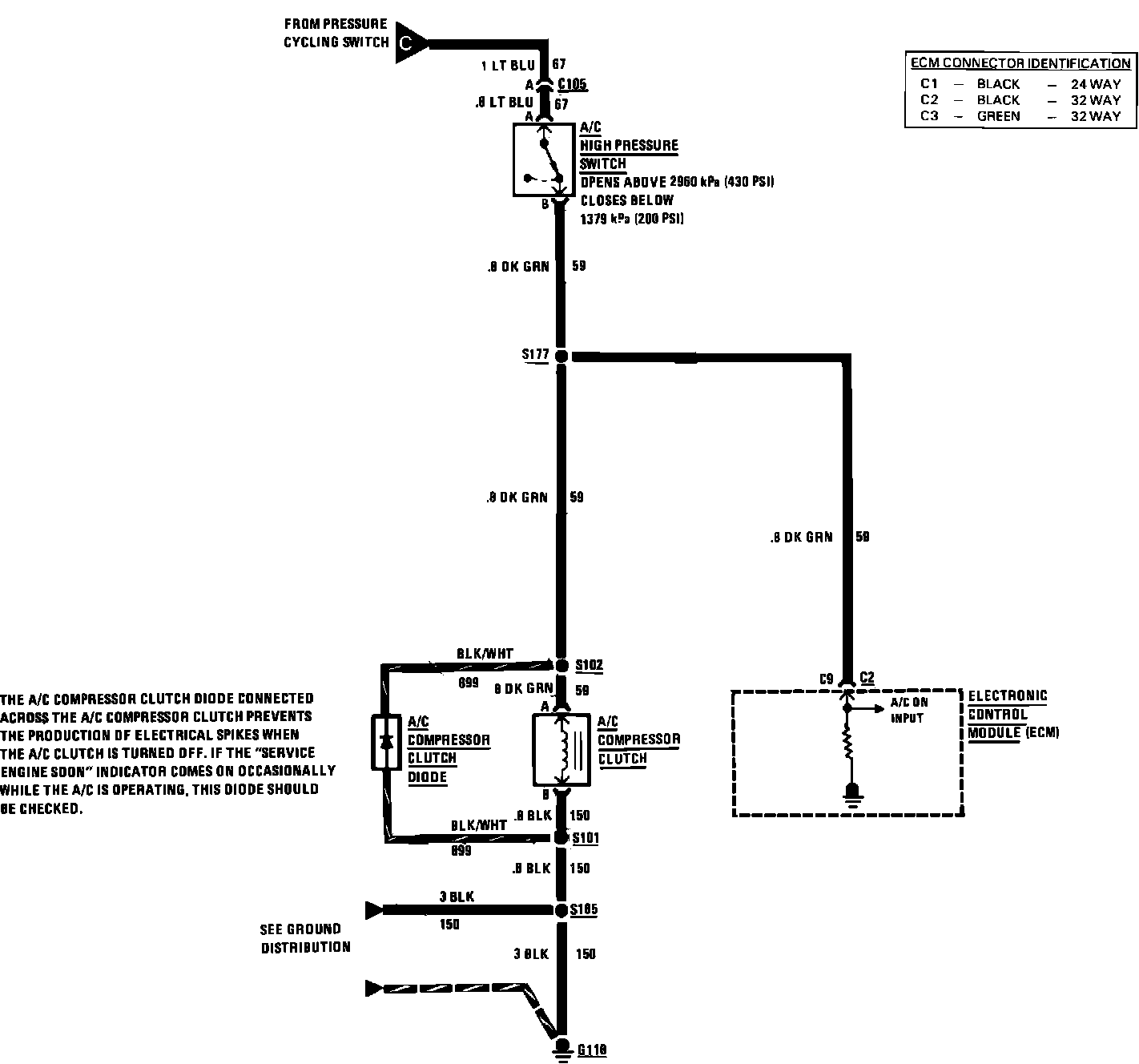

Air Conditioning: Compressor Controls C60:

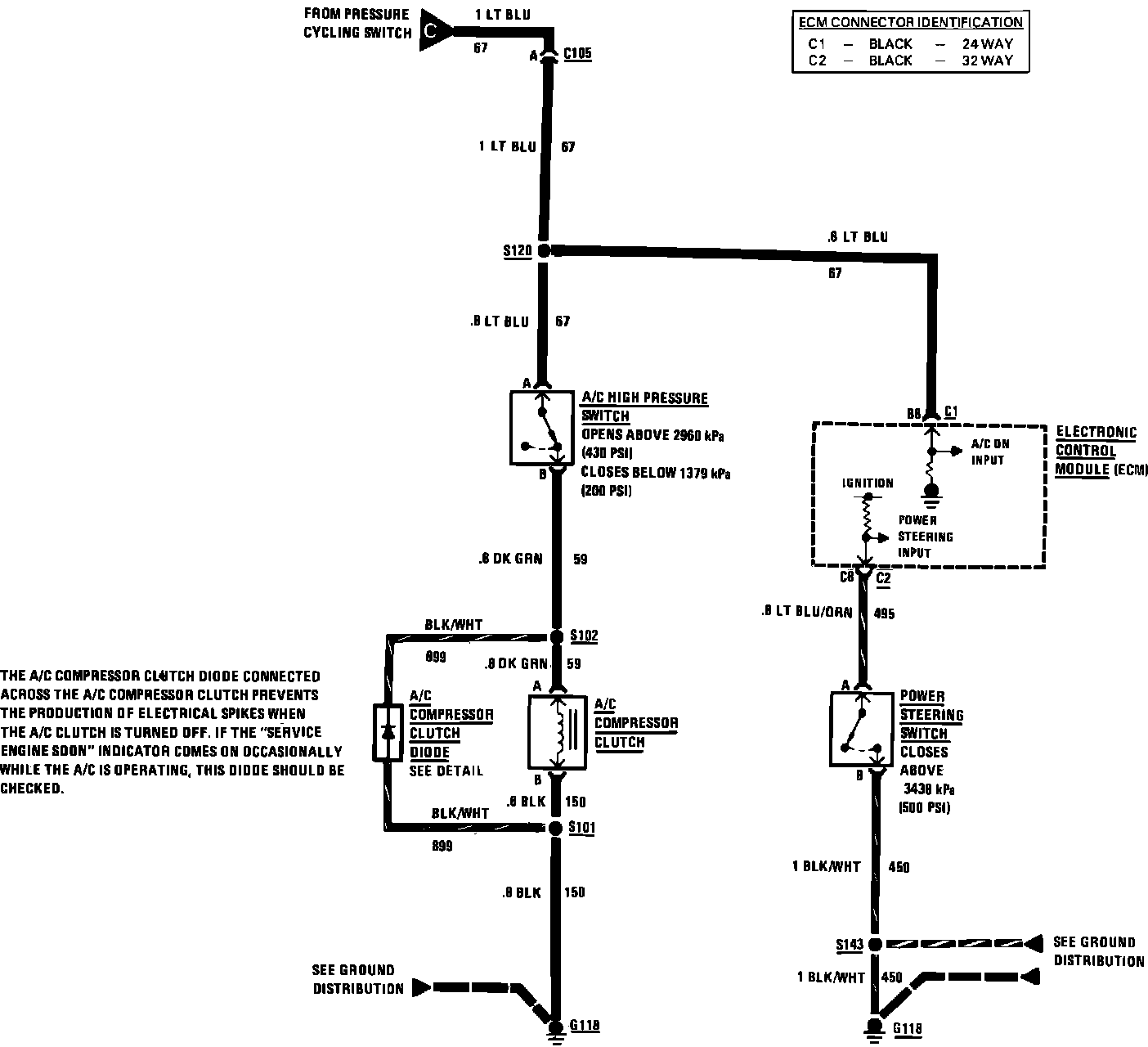

Air Conditioning: Compressor Controls:

Air Conditioning: Compressor Controls:
