Camaro Z28 V8-305 5.0L VIN F FI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
Tachometer
Tachometer

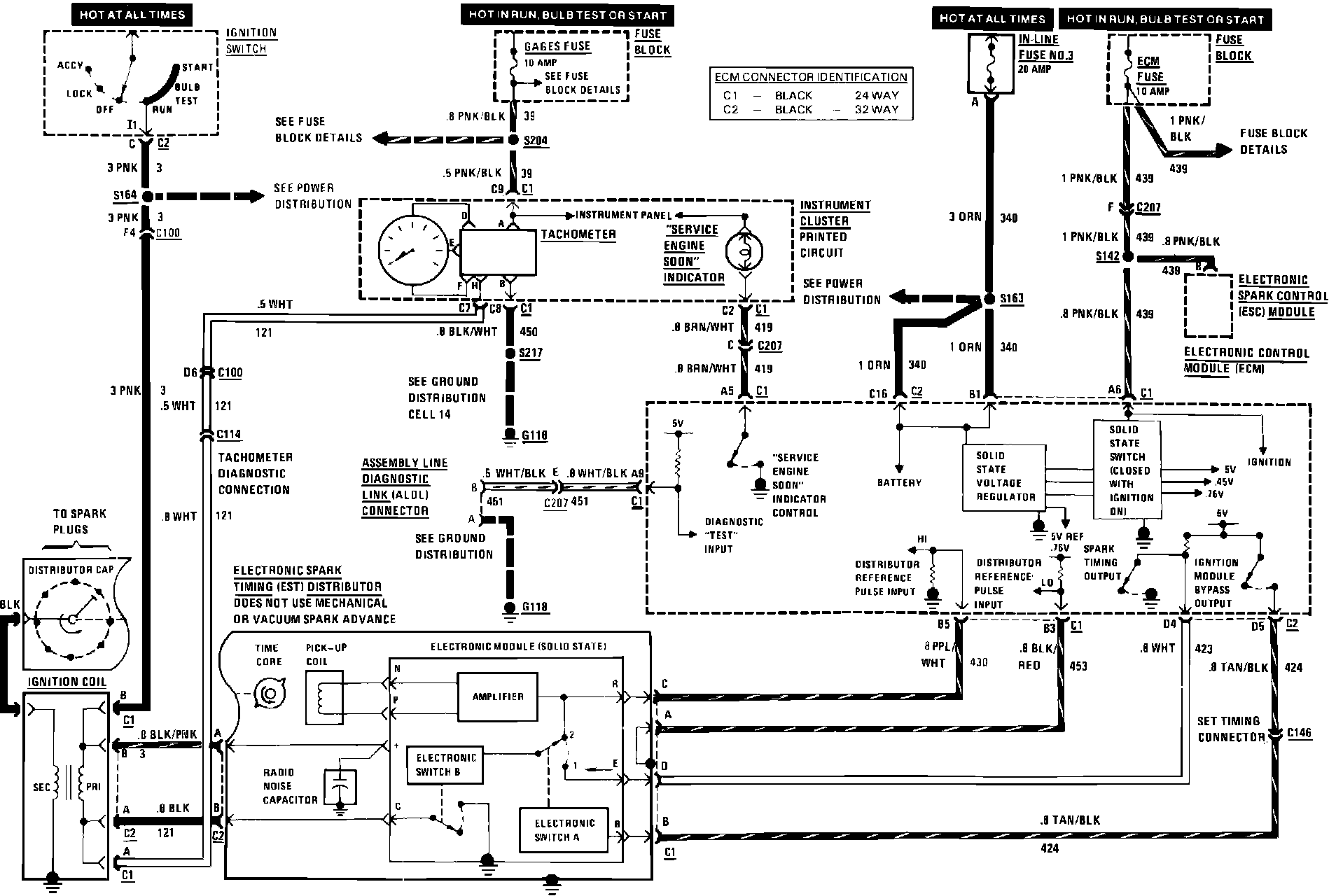

Throttle Body Injection: Ignition, Service Engine Soon Indicator, And Tachometer:
