Home >> Chevrolet >> 1991 >> Camaro Z28 V8-305 5.0L VIN F FI >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Torque Converter Clutch (TCC)

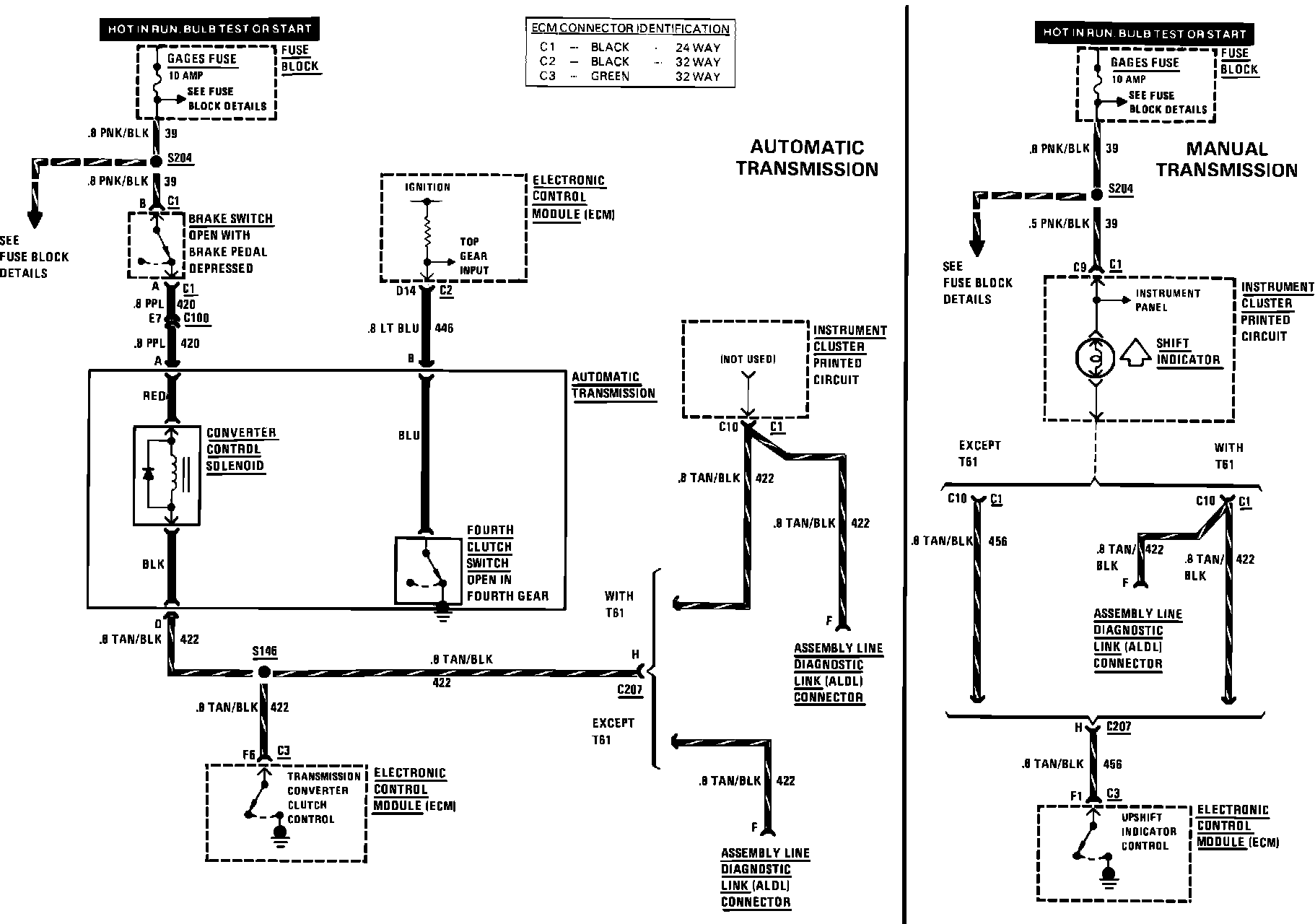

Torque Converter Clutch (TCC)

Tuned Port Injection And Multi-Port Fuel Injection: Transmission Converter Clutch And Upshift Indicator:
