DRL In-Line Resistor

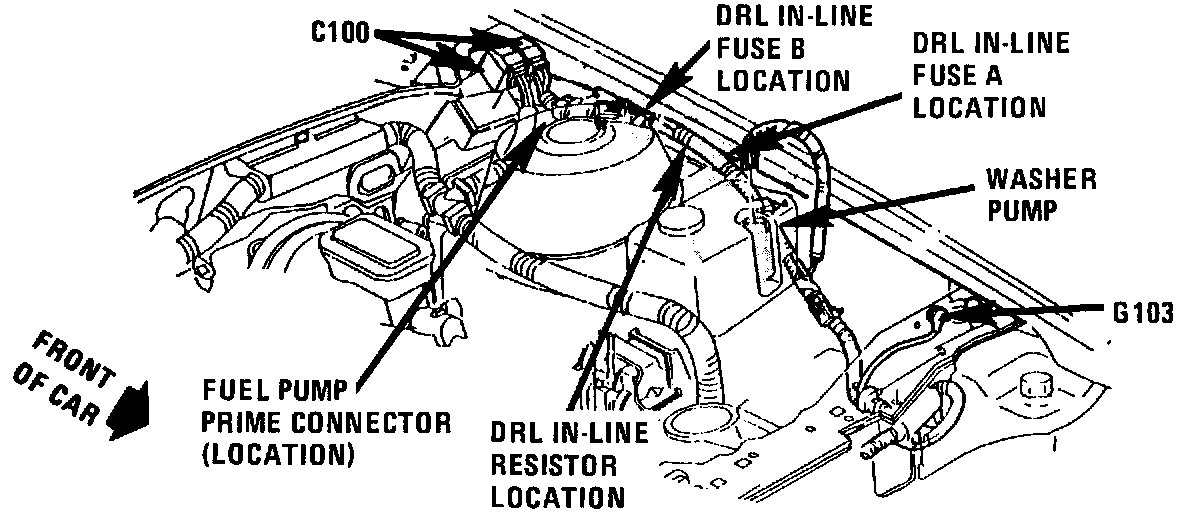

LH Side Of Engine Compartment:





LH Side Of Engine Compartment, By Strut Tower

Applicable to: 1991 Cavalier
