Home >> Chevrolet >> 1991 >> Cavalier/Z24 V6-191 3.1L >> Repair and Diagnosis >> Diagrams >> Components >> Miscellaneous Components >> Expansion Tube, A/C

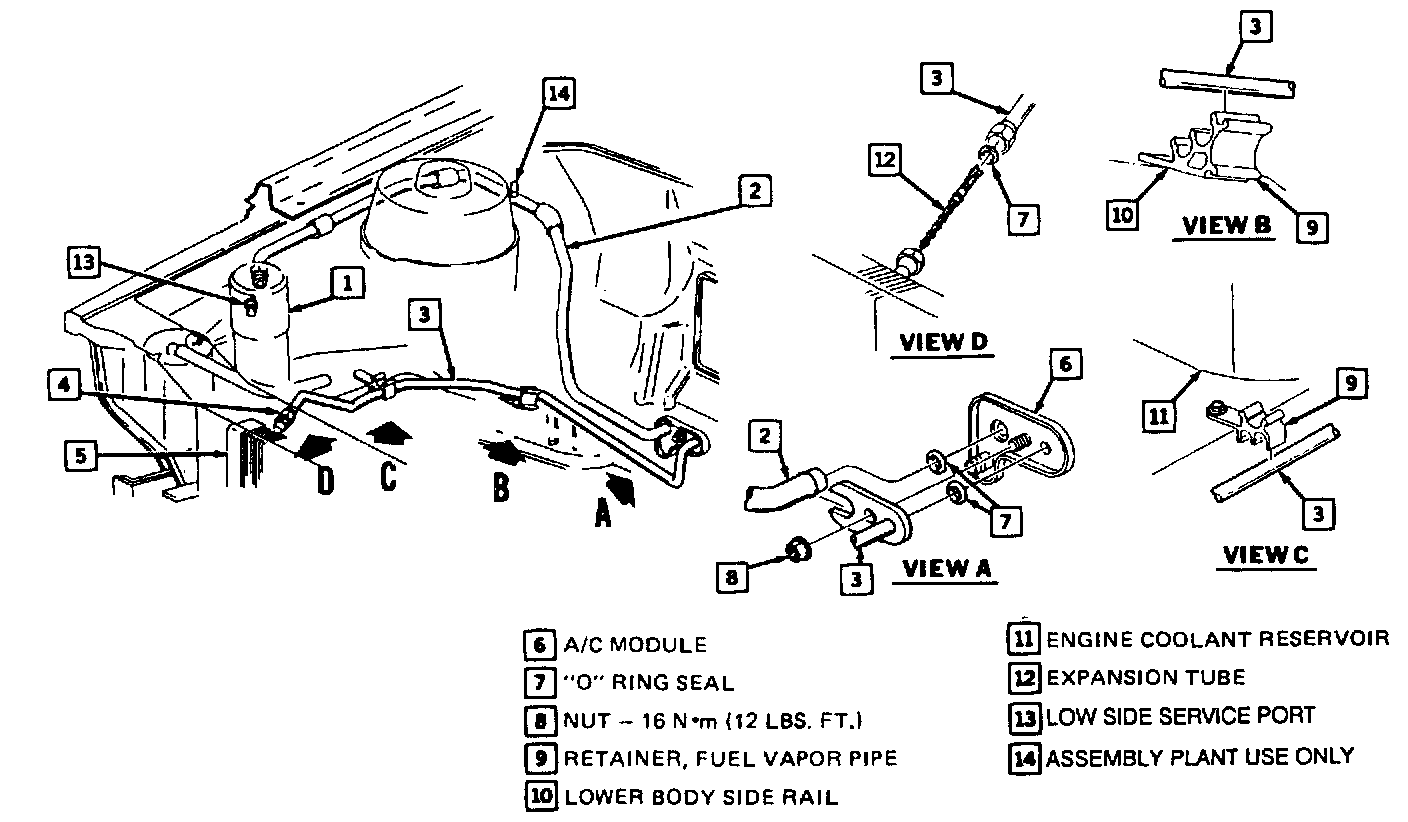

Expansion Tube, A/C

Evaporator Tube & Accumulator Tube:
