Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1991
>>
Cavalier/Z24 V6-191 3.1L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse
>>
ECM Fuse
ECM Fuse

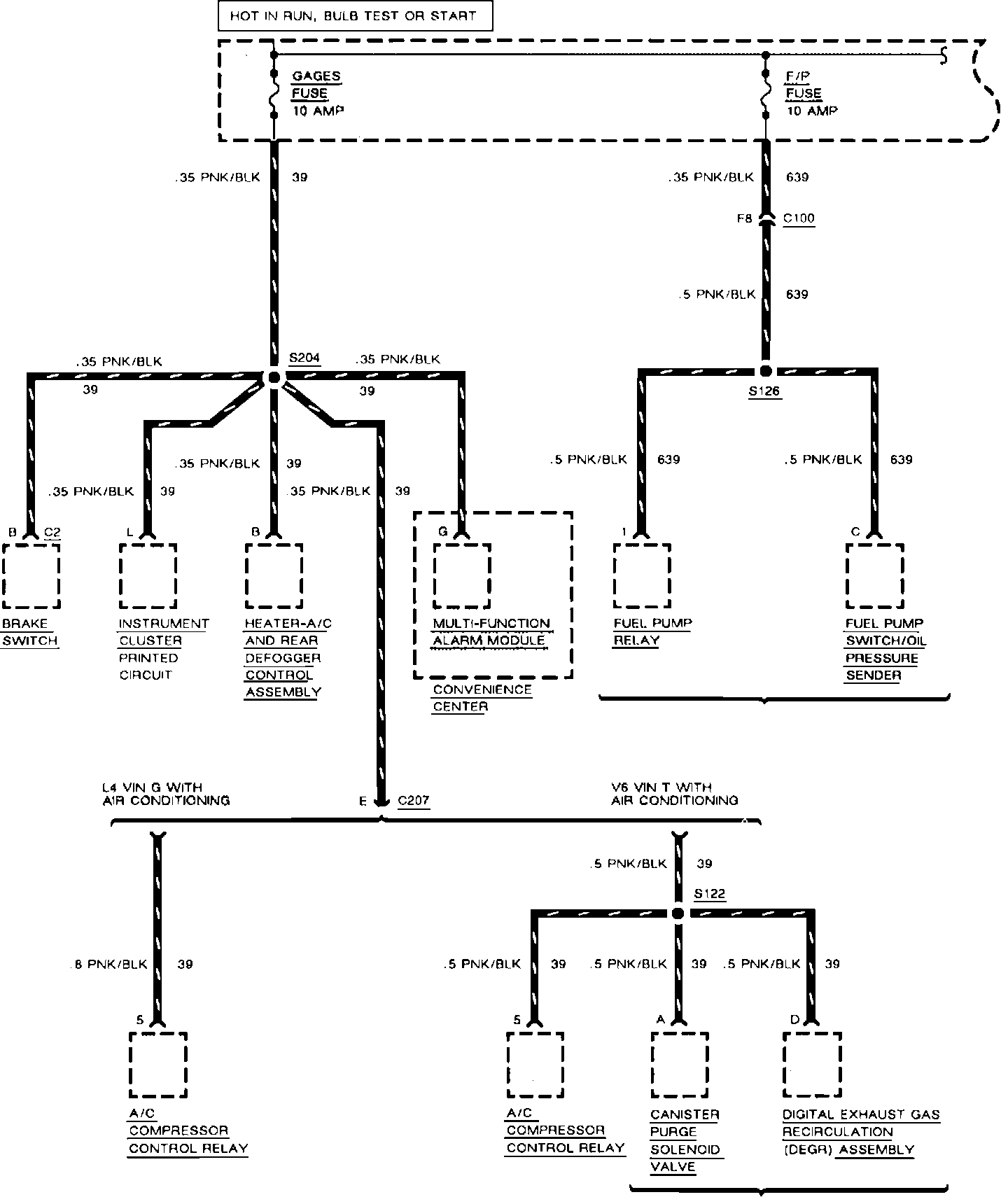

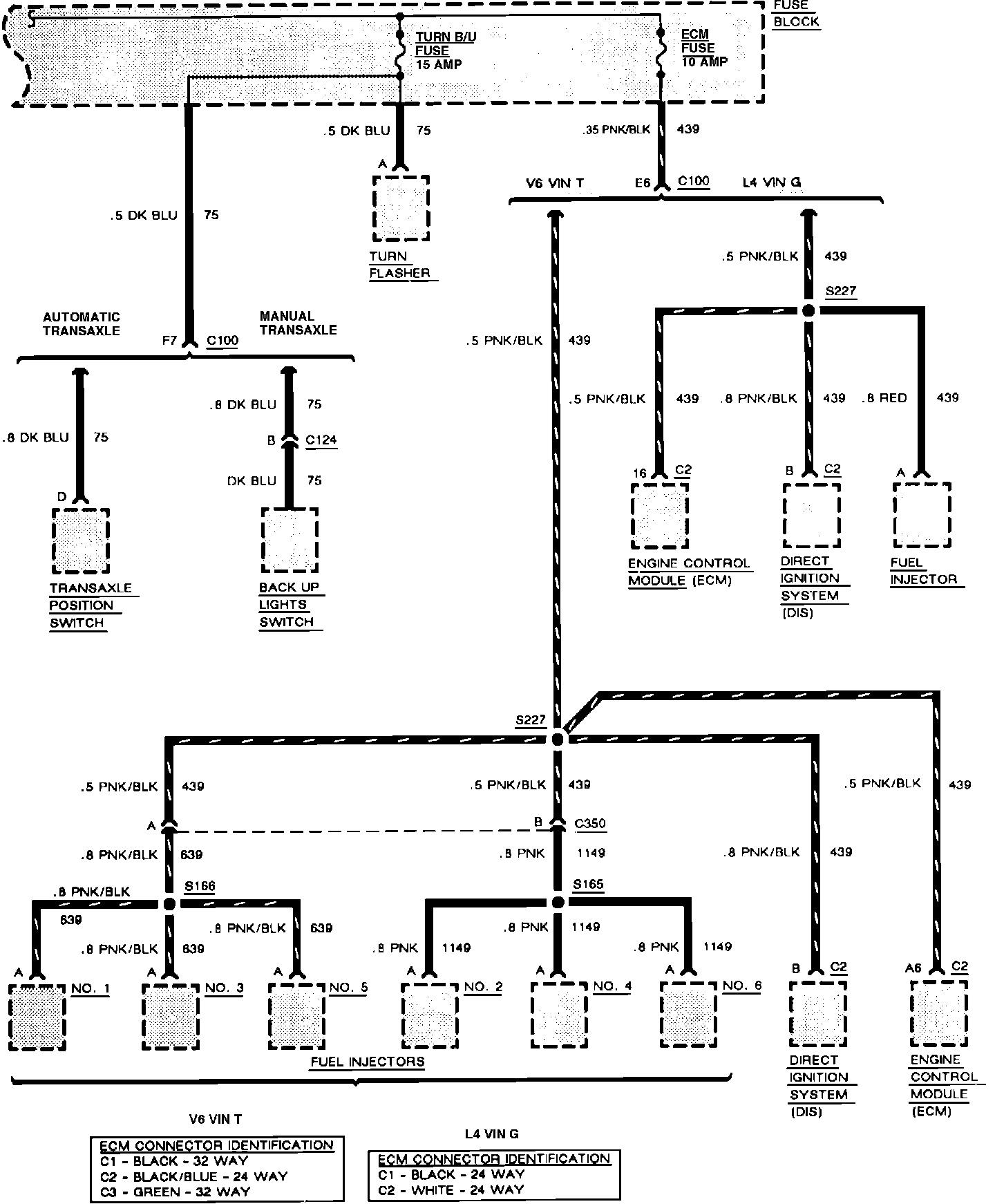

Fuse Block Details: Gages Fuse, F/P Fuse, Turn B/U Fuse And ECM Fuse:
Fuse Block Details: Gages Fuse, F/P Fuse, Turn B/u Fuse And ECM Fuse:
