Coupe

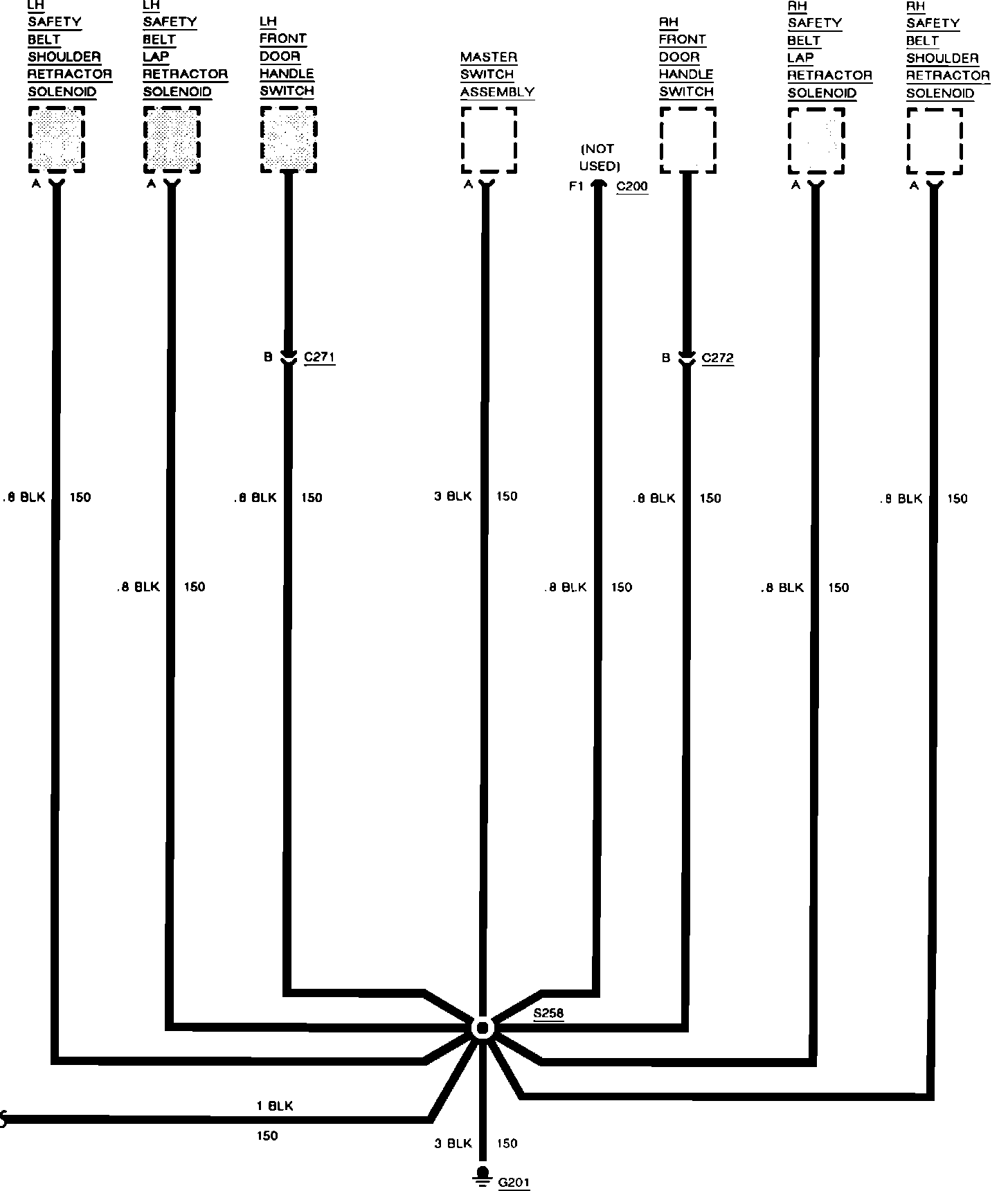

Ground Distribution: G302 And G201:



Ground Distribution: G302 And G201:



Ground Distributin: G321 And G201:
