Home >> Chevrolet >> 1991 >> Corsica L4-134 2.2L >> Repair and Diagnosis >> Cruise Control >> Cruise Control Servo >> Testing and Inspection >> Test C: Servo Resistance Test

Test C: Servo Resistance Test

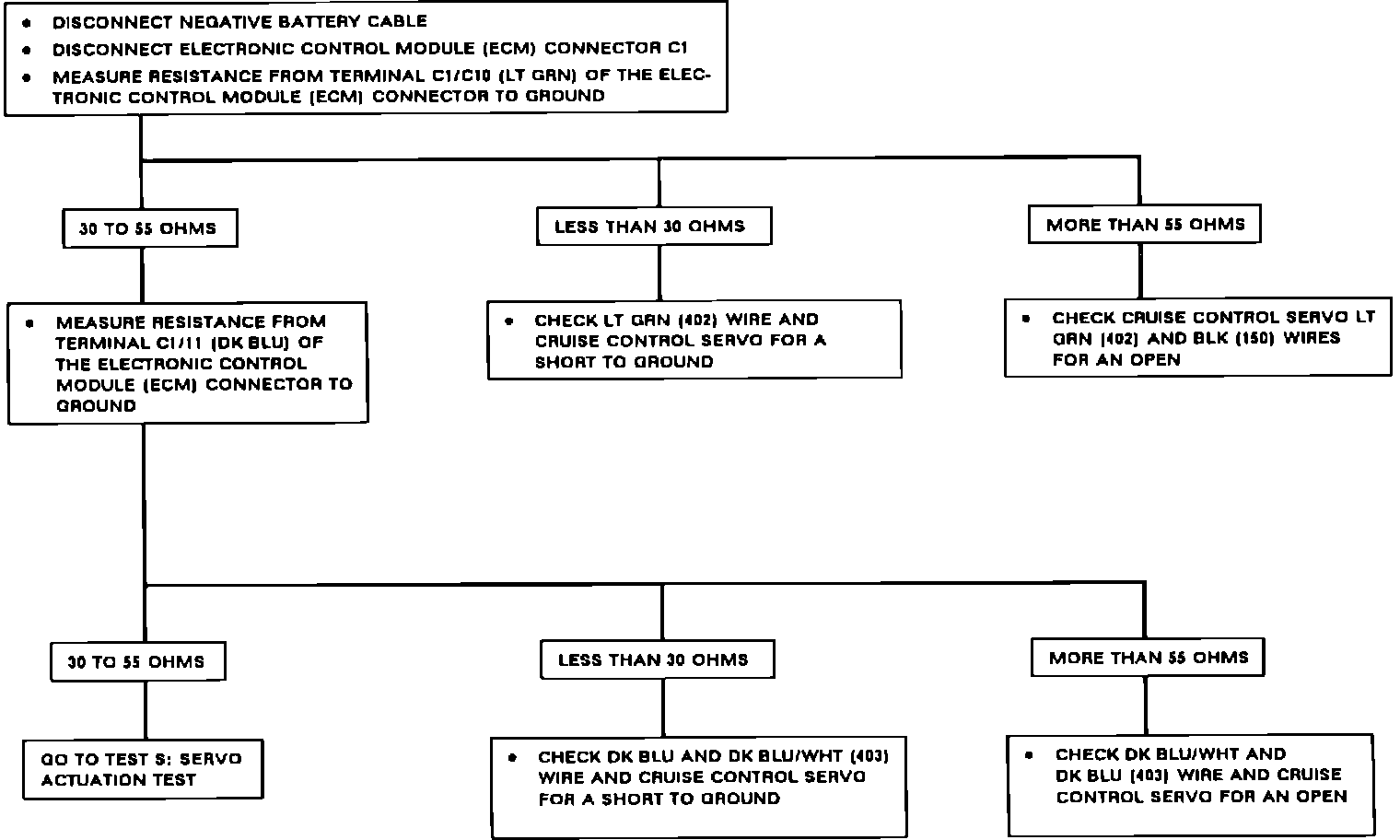

Fig. 33 Servo Resistance Test C:
