G100 and G101

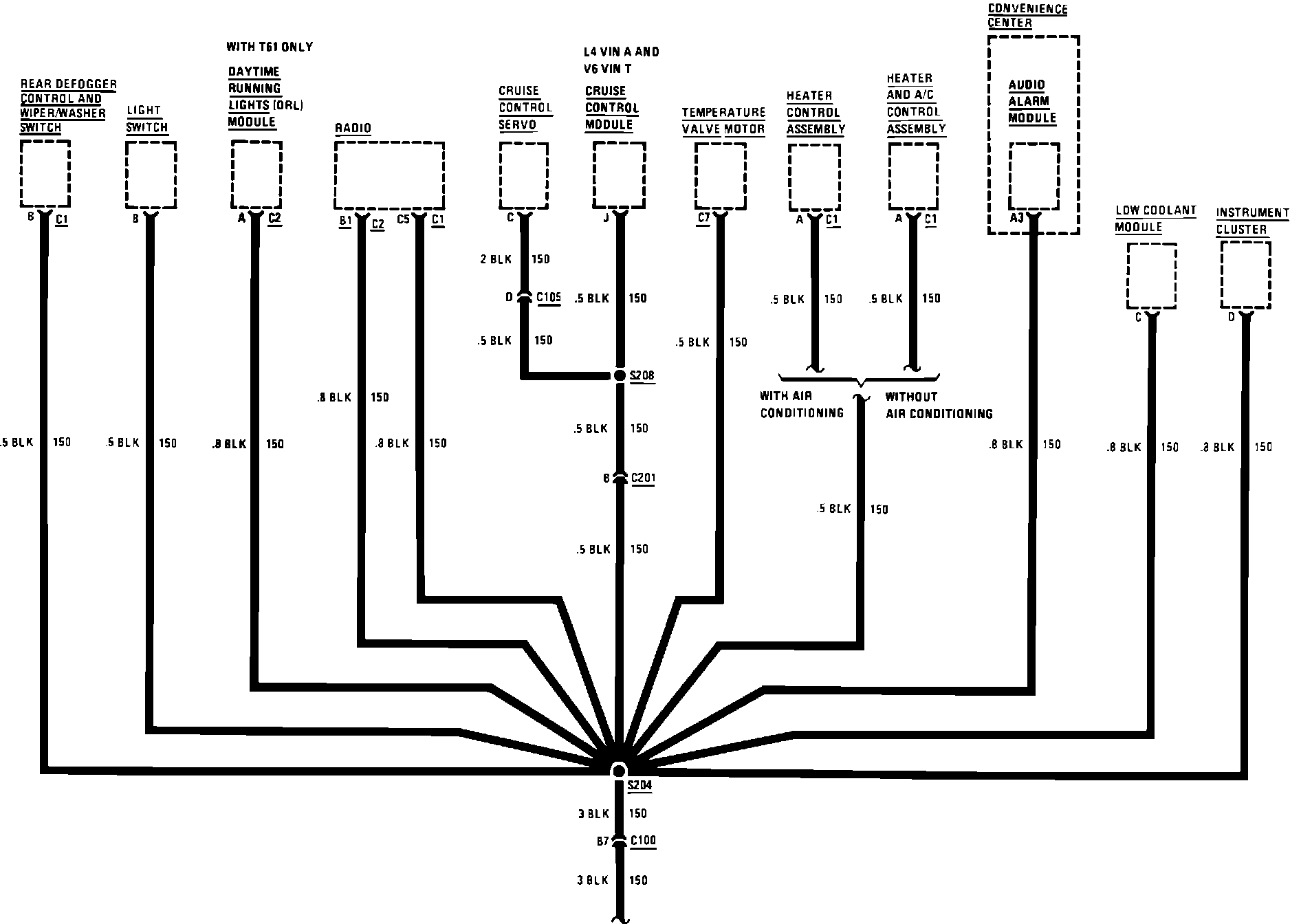

Ground Distribution: G100 And G101:

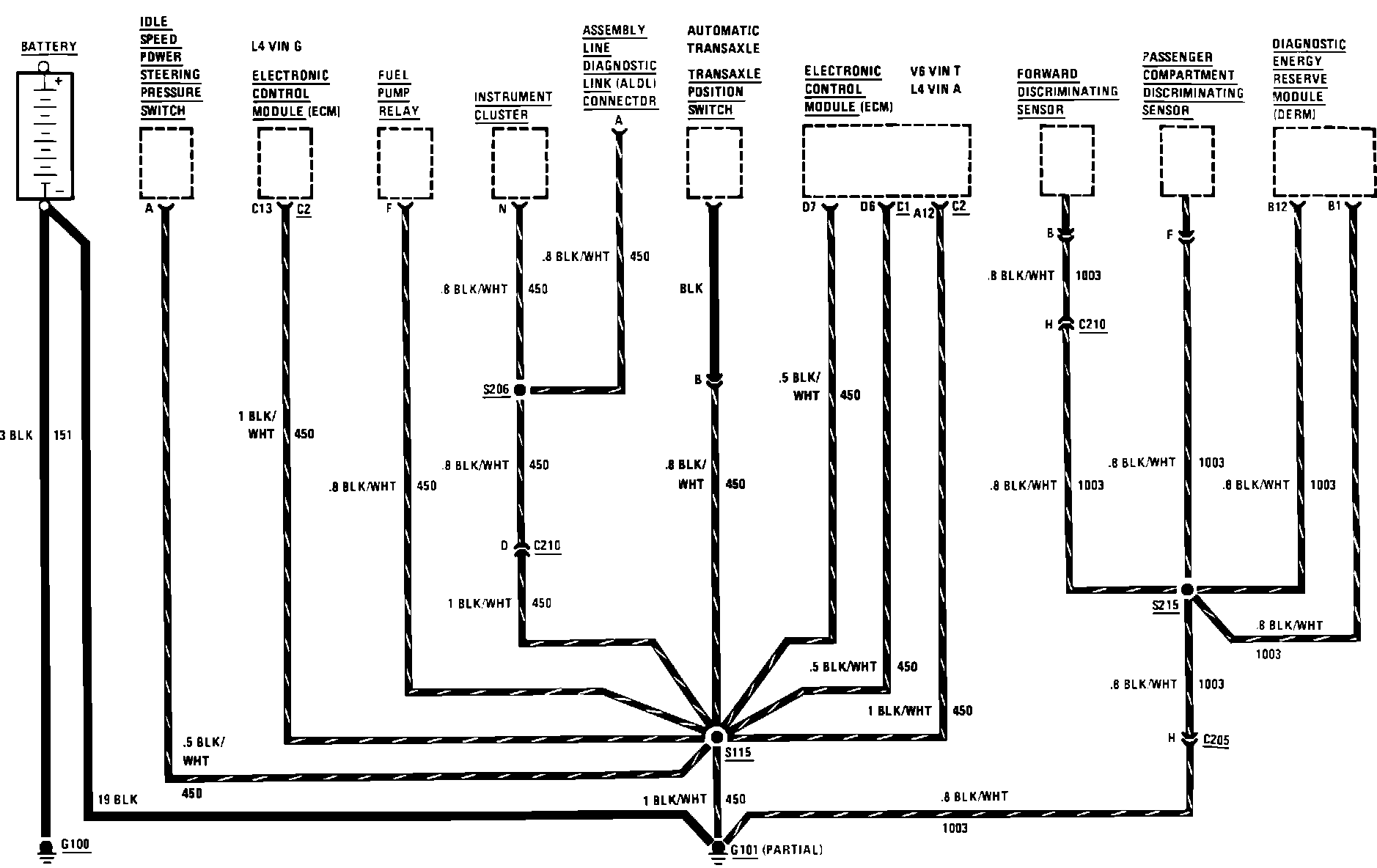

Ground Distribution: G101:

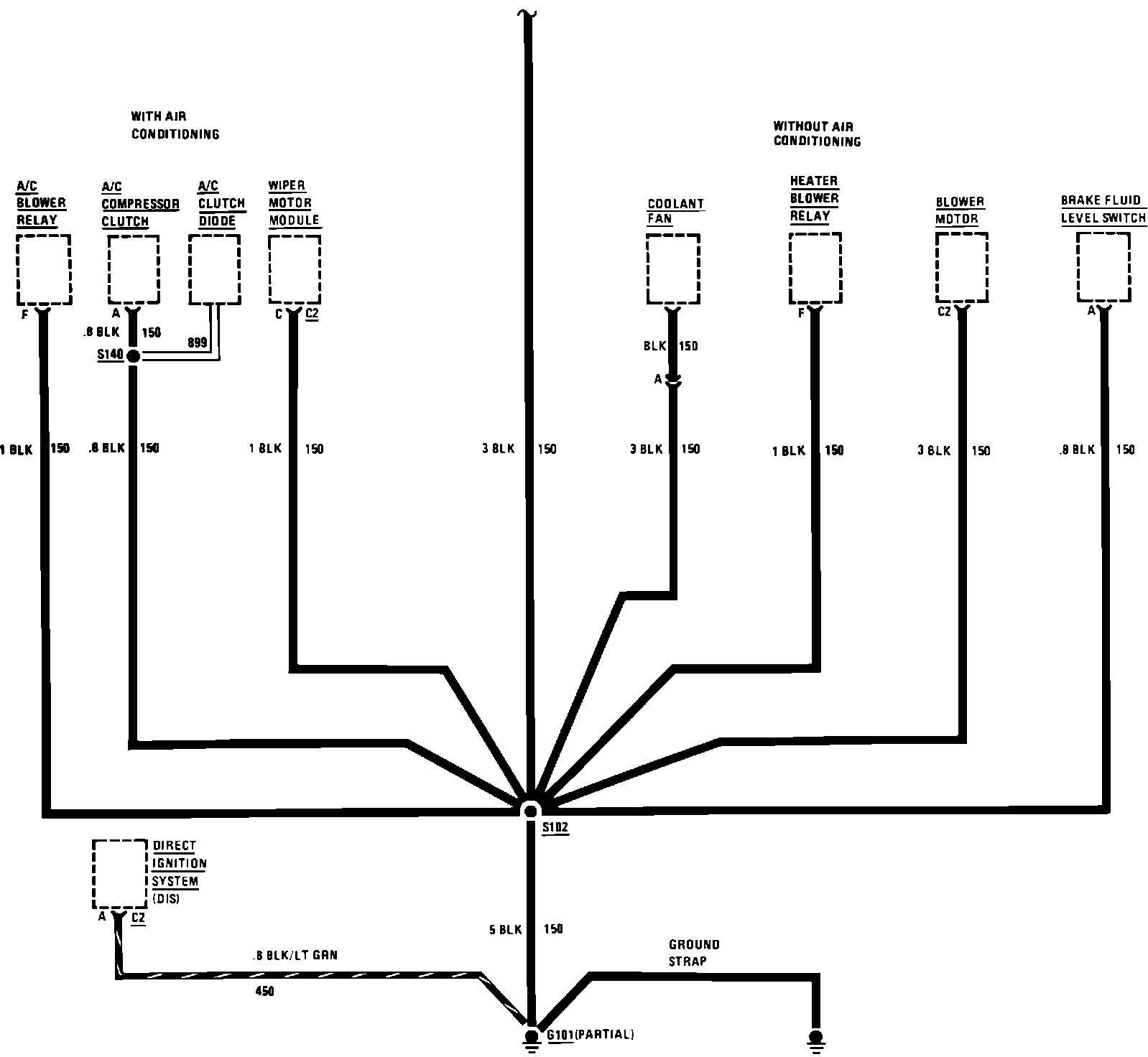

Ground Distribution: G101:
