Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1991
>>
S10/T10 P/U 4WD L4-151 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>
Miscellaneous Components
>>

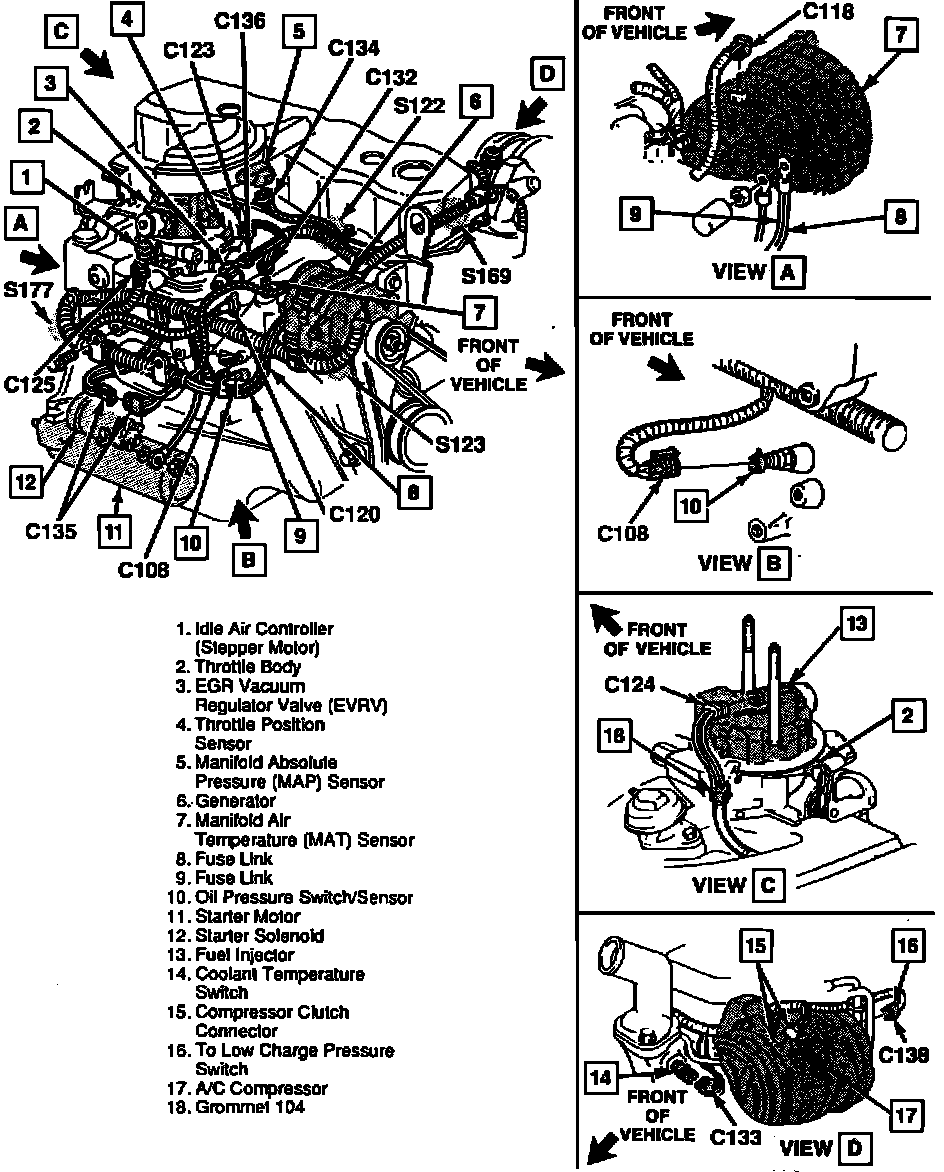

Fuse Link
Fuse Link
RH Front Side Of Engine:
Front Of Engine
Applicable to: 1991 2.5L/4-151 Engine
