Rear

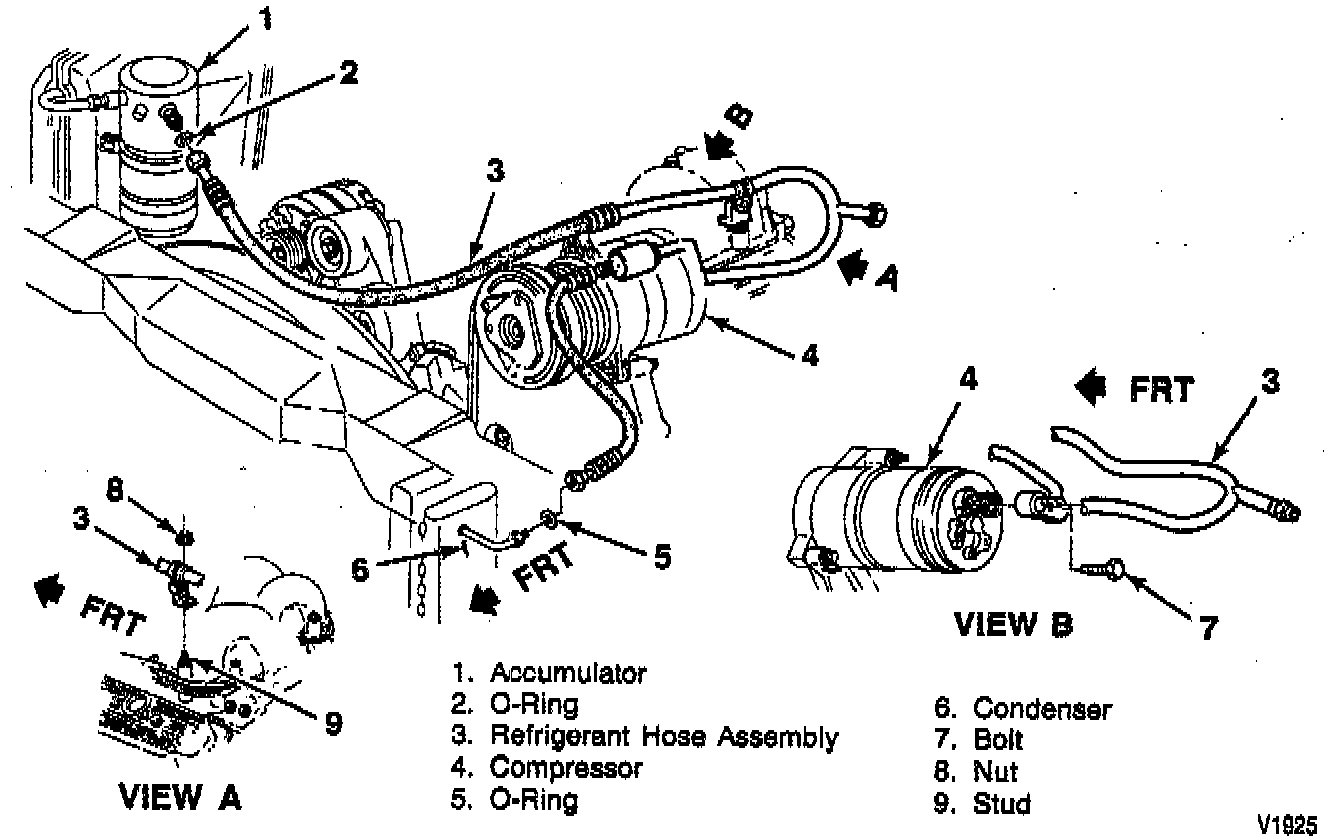

Refrigerant Hose Installation:

REMOVE OR DISCONNECT
1. Discharge and recover refrigerant from the system.
2. Engine cover.
3. Air cleaner.
4. Drive belt.
5. Oil filler tube.
6. Evaporator outlet tube from refrigerant hose assembly.
7. Hose bracket nut from stud.
8. Manifold bolt.
9. Manifold from the rear of the compressor.
10. Brace bolts and nuts.
11. Braces.
12. Electrical connections, as necessary.
13. Compressor from mounting bracket.
^ Drain and measure compressor oil from old compressor.

INSTALL OR CONNECT
^ Drain compressor oil from new compressor.
^ Refill new compressor with same amount of oil drained from old compressor. If less than 30 ml (1 fl. oz.) was drained from old compressor add 60 ml (2 fl. oz.).
1. Compressor to mounting bracket.
2. Electrical connections, as necessary.
3. Compressor mounting bolts.
^ Tighten bolts to 50 N.m (37 ft. lbs.).
4. Braces.
5. Brace bolts and nuts.
^ Tighten bolts to 25 N.m (18 ft. lbs.).
^ Tighten nuts to 33 N.m (24 ft. lbs.).
6. Manifold to the rear of the compressor.
7. Manifold bolt.
^ Tighten bolt to 35 N.m (26 ft. lbs.).
8. Hose bracket nut to stud.
^ Tighten nut to 24 N.m (18 ft. lbs.).
9. Evaporator outlet tube to refrigerant hose assembly.
10. Oil filler tube.
11. Drive belt.
12. Air cleaner.
13. Engine cover.
14. Evacuate and recharge the system.
^ Check the system for leaks.
