Rear

Auxiliary Heater:

DESCRIPTION

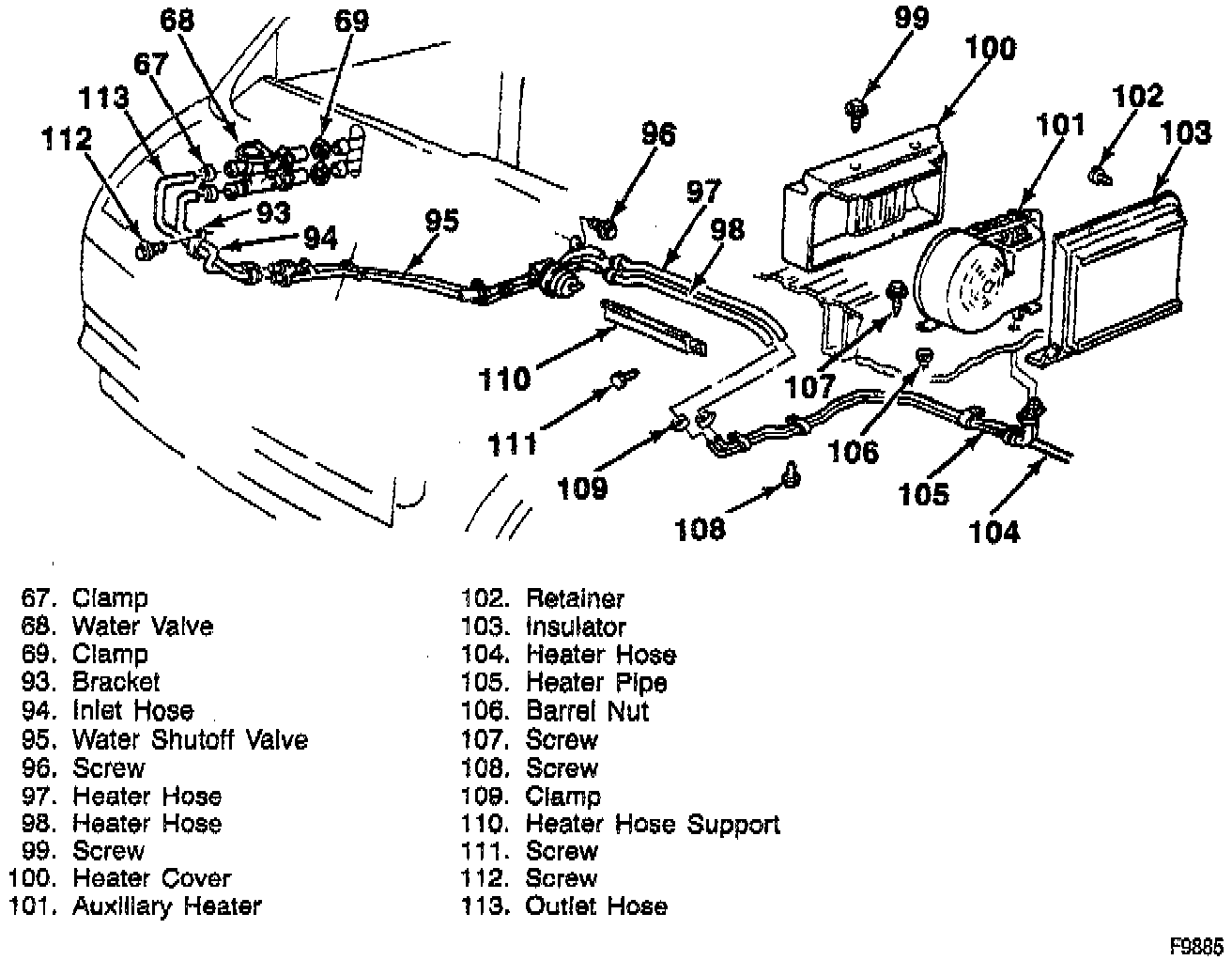

An optional floor mounted heater provides heating to the rear of the vehicle.

This unit operates independent of the standard heater, and is regulated through its own control at the instrument panel. This system consists of a separate core and fan unit.

Heater hoses extend from the unit to a vacuum operated water valve where they are connected to the standard heater hoses.

A 3 position vacuum operated water valve, cuts off coolant flow in the off position, eliminates radiant heat, and reduces coolant flow in the "LO" and "MED" positions.
