Chart 8 - Delay Doesn't Decrease W/Increasing Vehicle Speed
Chart 8 - Delay Doesn't Decrease W/Increasing Vehicle Speed

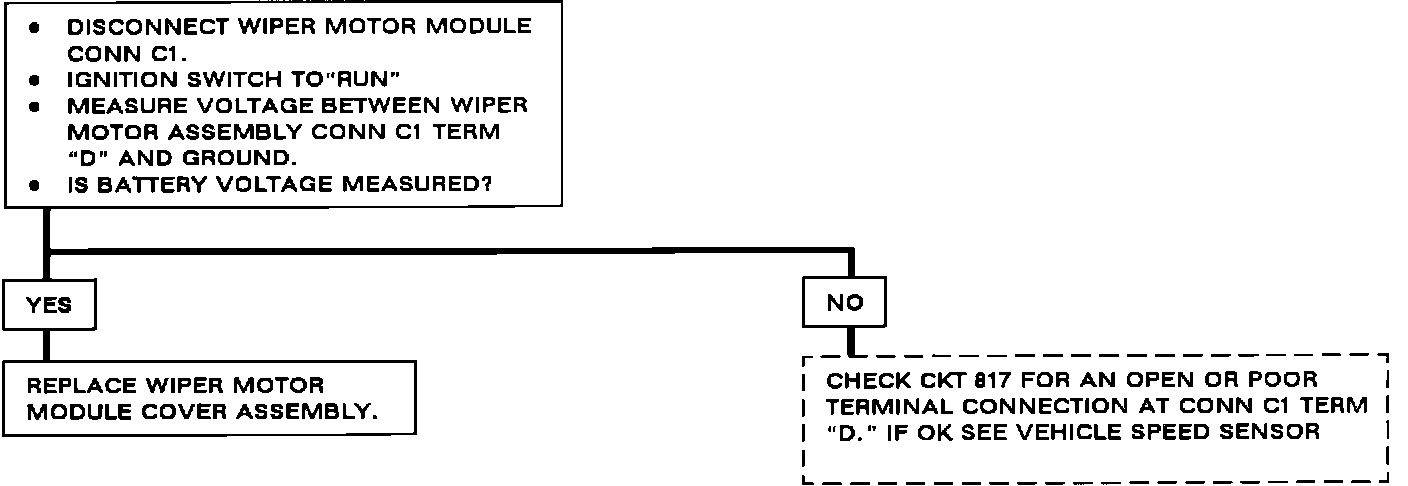

Chart #8 - Pulse Delay Does Not Decrease With Increasing Vehicle Speed:
