Without Air Conditioning

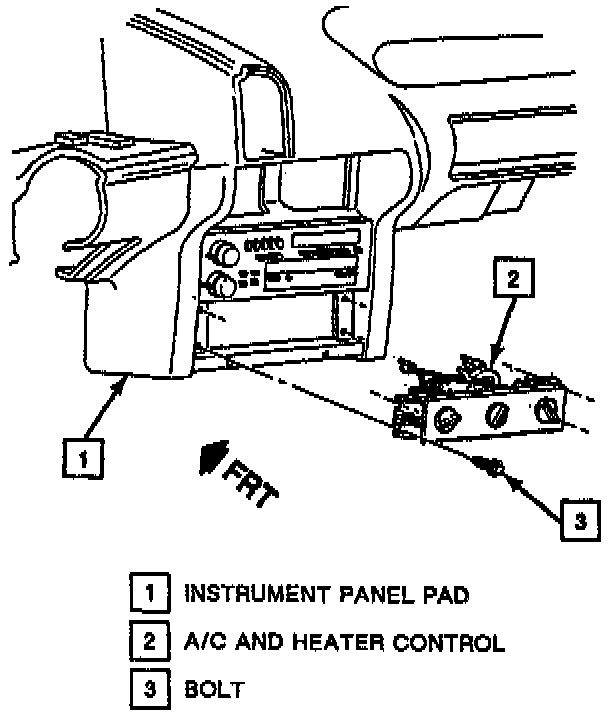

Heater Control:

REMOVE OR DISCONNECT

1. Bezel from Instrument Panel (I/P).
2. Heater control assembly screws.
3. Electrical connector from heater control assembly.
4. Vacuum harness from heater control assembly.
5. Heater control assembly from vehicle.

INSTALL OR CONNECT
1. Vacuum harness to heater control assembly.
2. Electrical connector to heater control assembly.
3. Screws after positioning heater control assembly.
4. I/P trim bezel.
