With Duo Servo Brakes

For additional information see Notes, Warnings, and Hints. Fundamentals and Basics

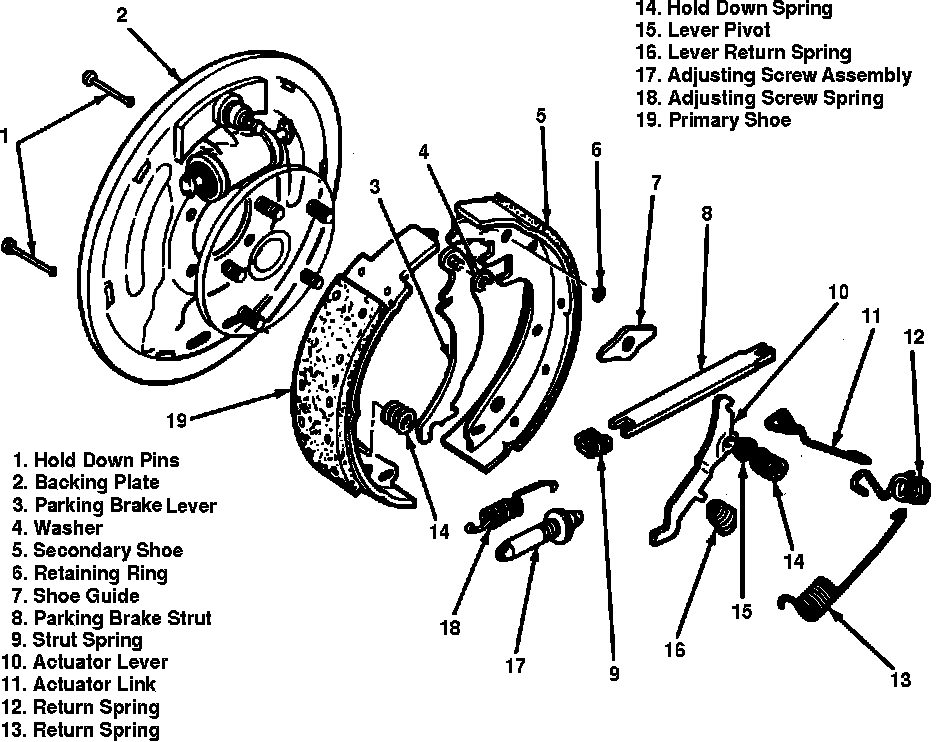

Fig. 1 Exploded View Of Drum Brake Assembly.:

1. Raise and support vehicle, then remove tire and wheel assembly.
2. Remove brake drum. If brake lining is dragging on brake drum, back off brake adjustment by rotating adjustment screw. If brake drum is rusted or corroded to axle flange and cannot be removed, lightly tap flange to drum mounting surface with a suitable hammer.
3. Using brake spring pliers or equivalent, unhook primary and secondary return springs. Observe location of brake parts being removed to aid during installation.
4. Remove brake hold-down springs with suitable tool.
5. Lift actuating lever, then unhook actuator link from anchor pin and remove.
6. Remove actuating lever(s) and return spring.
7. Spread shoes apart and remove parking brake strut and spring.
8. Disconnect parking brake cable from lever, then remove brake shoes from backing plate.
9. Separate brake shoes by removing adjusting screw and spring, then unhook parking brake lever from shoe assembly.
10. Clean dirt from brake drum, backing plate and all other components.

WARNING: Do not use compressed air or dry brush to clean brake parts. which, if inhaled, can cause serious injury. Clean brake parts with denatured alcohol, brake parts cleaner or a suitable vacuum cleaner to minimize airborne dust.
