Fuel - Poor Fuel Economy/Short Driving Range
Number: 93-87-6CSection: 6C
Date: JAN. 1993
Corporate Bulletin No.: 260103R
ASE No.: A1, A8
Subject:
NATURAL GAS VEHICLE FUEL CONSUMPTION/DRIVING RANGE
Model and Year:
1992-93 C1 AND C2 TRUCKS

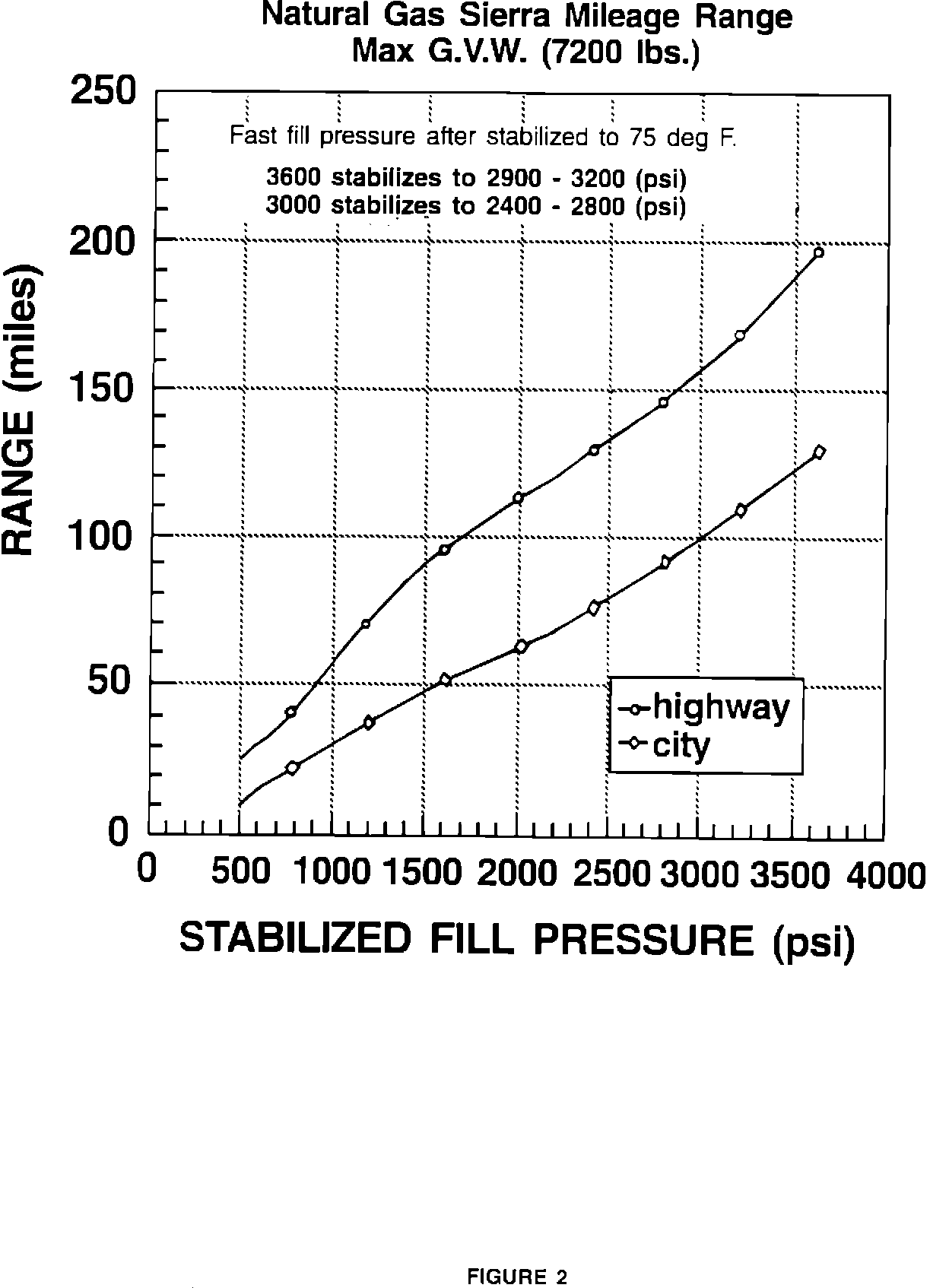

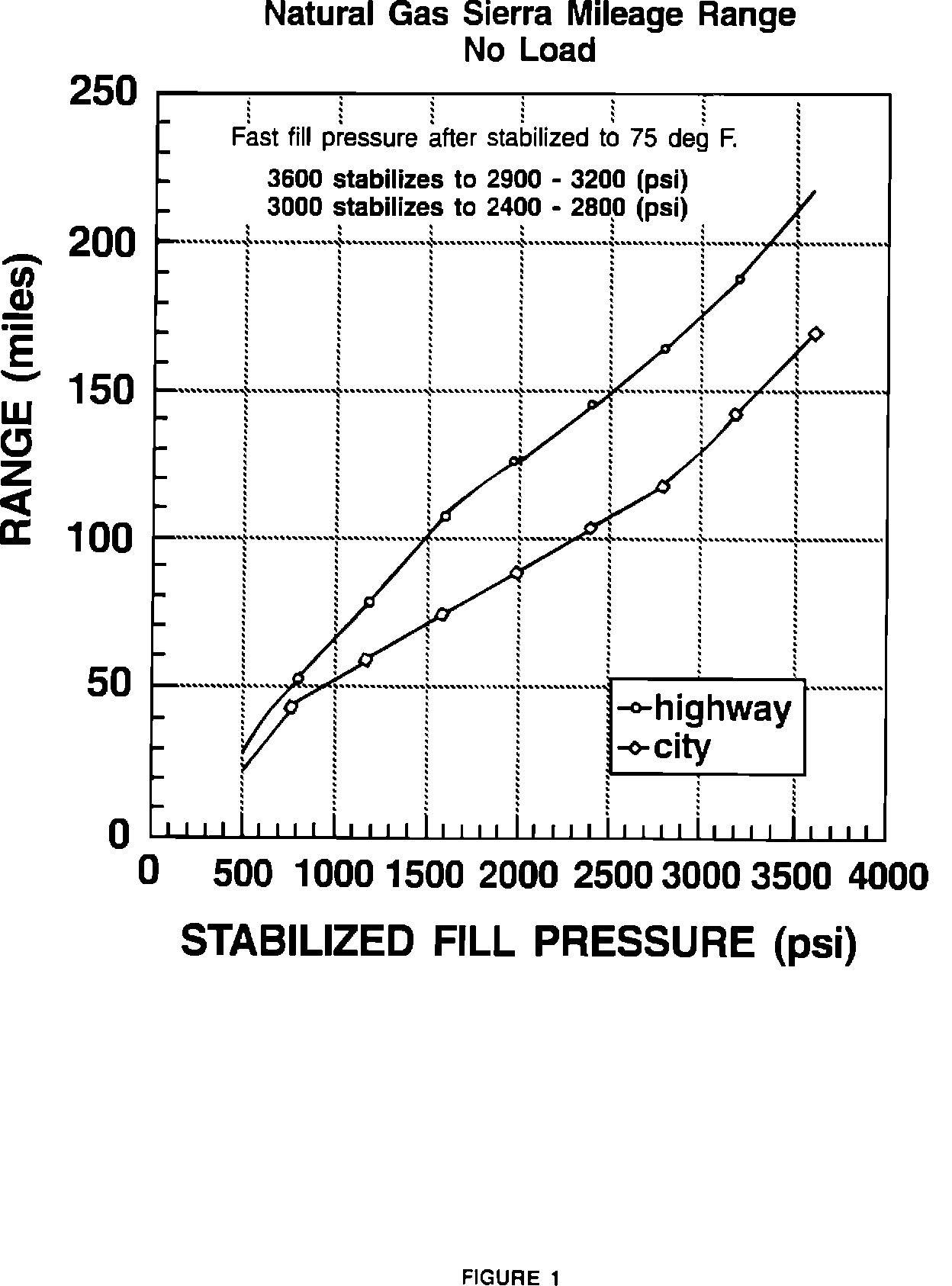

Some operators of Natural Gas Vehicles (NGV) may comment on what may be perceived as poor fuel economy and/or short driving range. The charts represent actual fuel range of both an unloaded (Figure 1) and a loaded (Figure 2) natural gas fueled Chevrolet full size 2 wheel drive pickup truck. These ranges were determined with empty being approximately 300 to 350 PSI.
A noticeable deterioration in full throttle performance will occur at approximately 350 PSI of fuel and below.
When evaluating fuel consumption, the weight of the load, driving habits of the operator, ambient temperature, attitude, and the route (City- Stop and Go vs Highway speeds) all affect the rate of fuel consumption.
Also note that the fill pressure when fast filled will decrease after a period necessary for the fuel to cool down to ambient temperatures. If possible, fill the vehicle in the evening and top it off in the morning. This method will maximize the fuel capacity of the system.
The fuel capacity for this vehicle at 3600 PSI is equal to approximately 11.2 gallons of gasoline. If the fuel pressure of the filling station is any less than 3600 PSI then the fuel range will be reduced. 3000 PSI is equivalent to 9.3 gallons and 2400 PSI is equivalent to 7.5 gallons.
