C 2500 Truck 2WD V8-350 5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Engine Control Module
>>
With 4L60-E Transmission
With 4L60-E Transmission

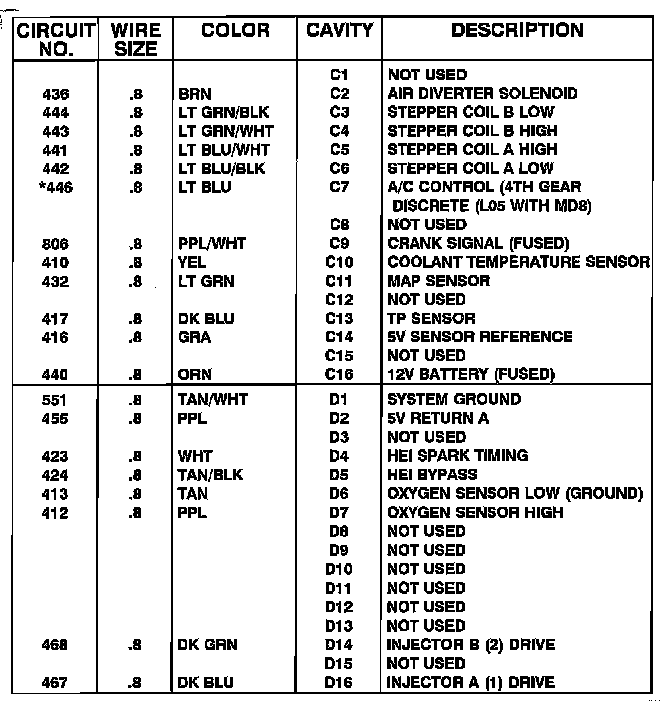

Electronic Control Module (ECM) Pinouts:

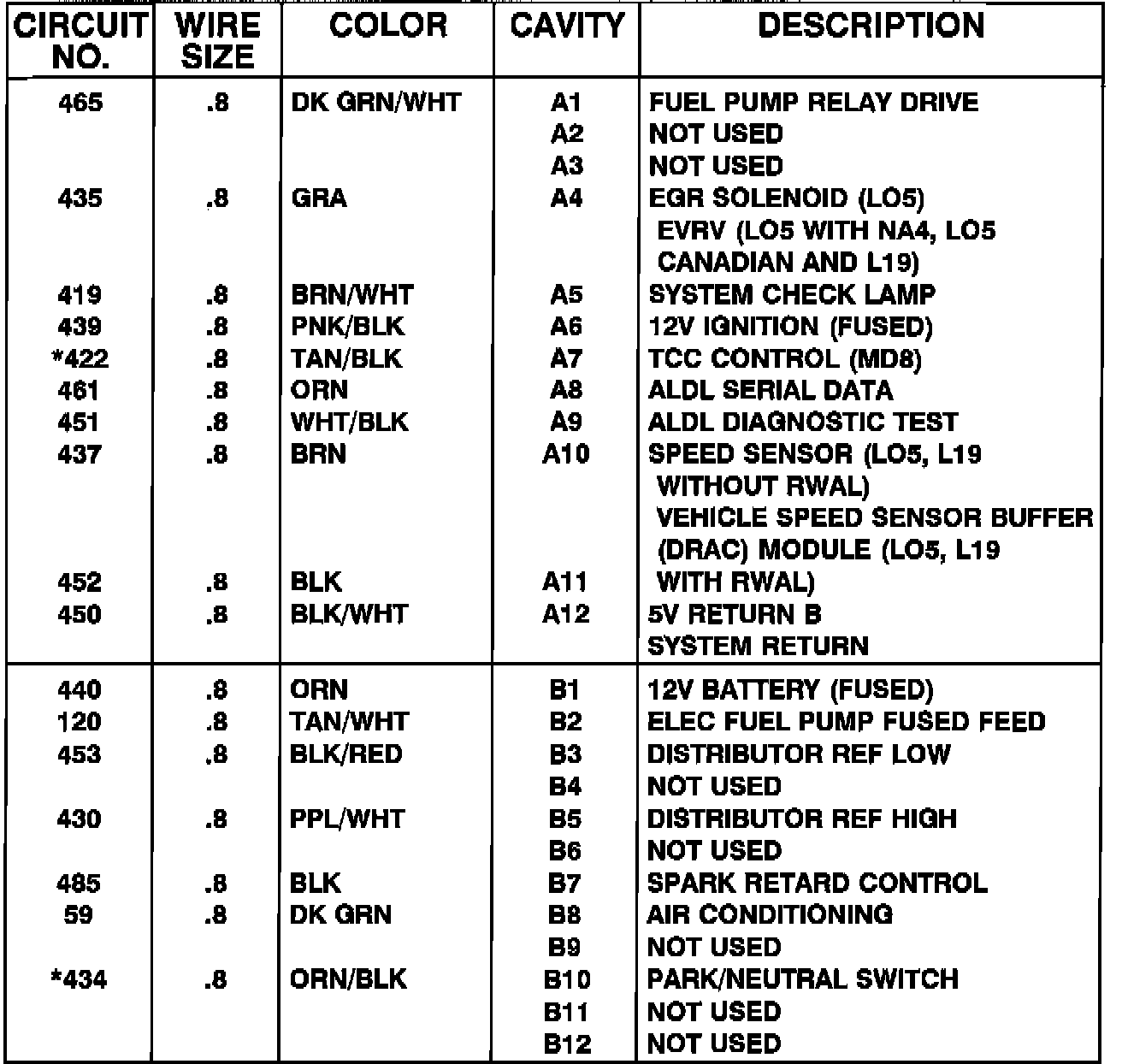

Electronic Control Module (ECM) Pinouts:
