Fastener Tightening Specifications - Sequence

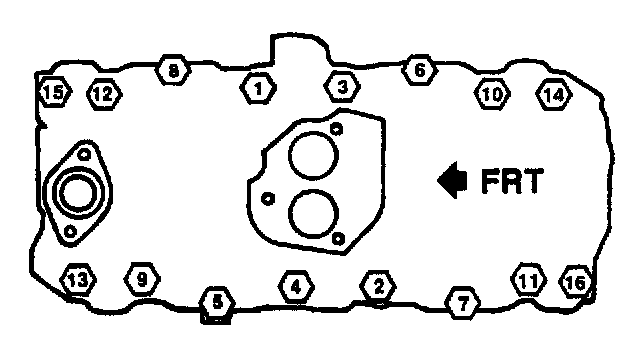

Intake Manifold Torque Sequence:

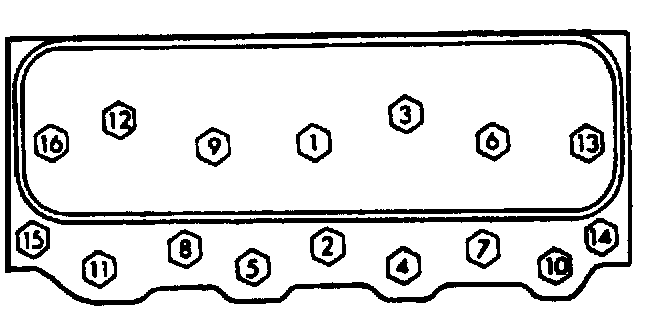

Cylinder Head Torque Sequence:
