Chevrolet
>>
1992
>>
Caprice Wagon RWD V8-350 5.7L
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Control Assembly
>>
Locations
>>
Blower Controls
Blower Controls

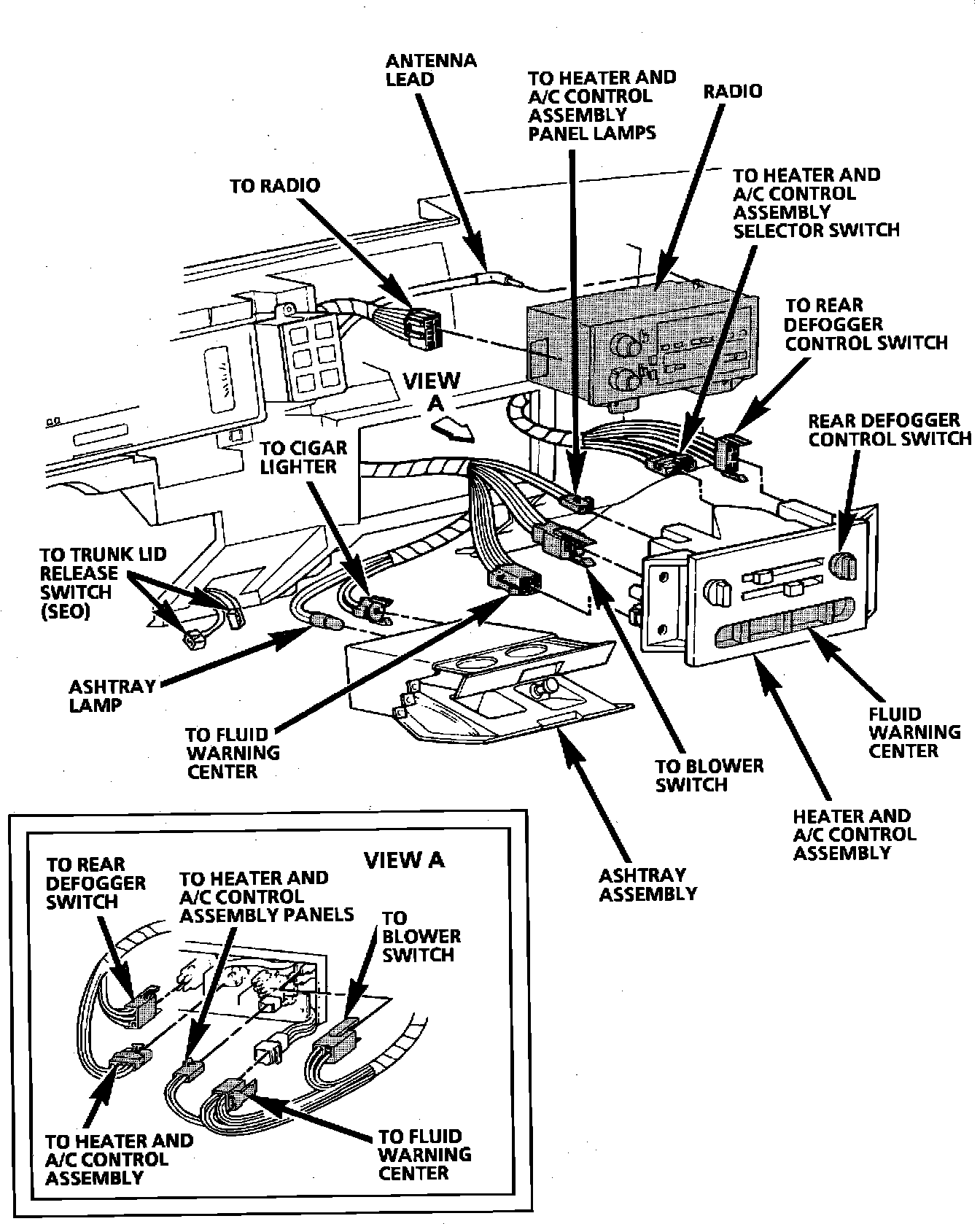

Component Location View. Front of Instrument Panel:
In Heater and A/C Control Assembly, Center I/P
