Auxiliary Fuse Block

AUXILIARY FUSE BLOCK (RPO 7Z5)

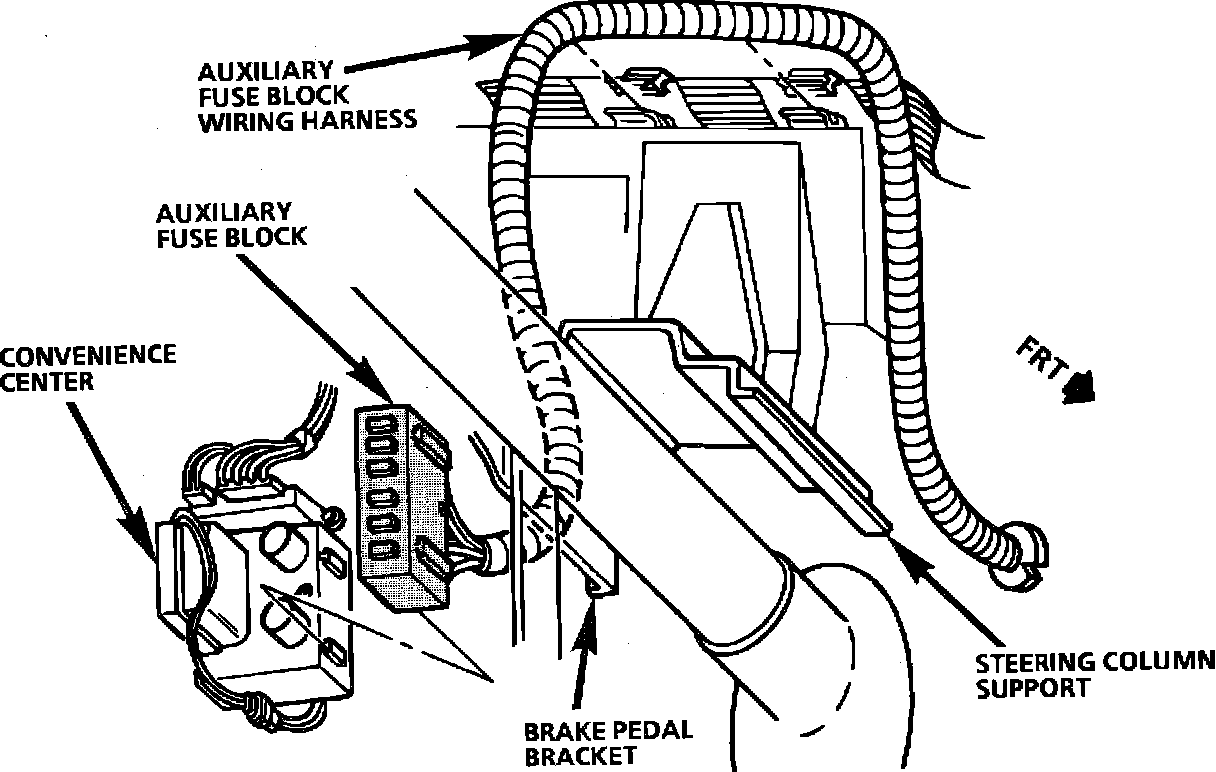

Component Location View. LH Lower Instrument Panel:






The Auxiliary Fuse Block is mounted to the RH side of Convenience Center.
