Compressor Replacement

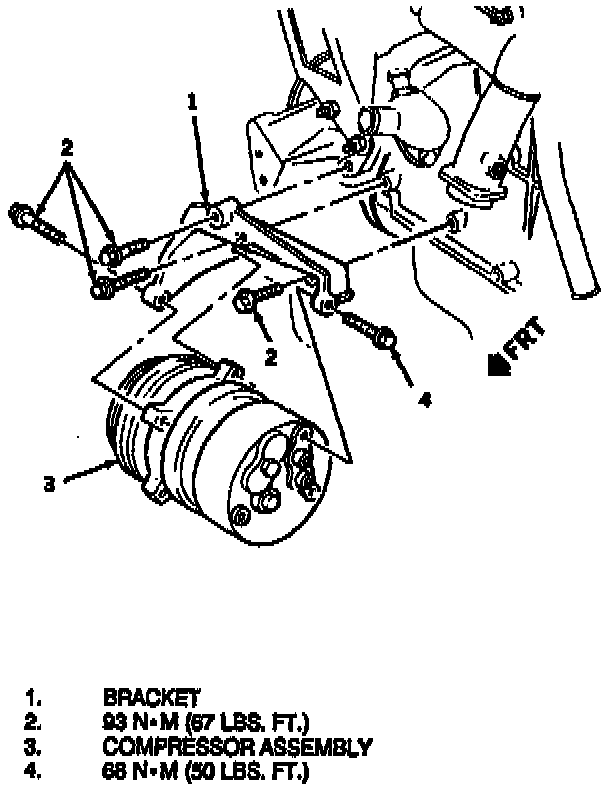

Compressor Mounting:

REMOVE OR DISCONNECT
1. Recover refrigerant from A/C system.
2. Serpentine drive belt.
3. Raise vehicle.
4. Right splash shield.
5. Electrical connector at compressor clutch.
6. Bolt attaching A/C compressor and condenser hose to rear of compressor.
7. Compressor attaching bolts and compressor.

NOTICE: If replacing compressor, refer to Refrigerant Oil Distribution. Capacity Specifications

INSTALL OR CONNECT
1. Compressor into position and front bolts.
2. Rear bolts.
3. Compressor and condenser hose and bolt.
4. Electrical connector to clutch coil.
5. Right splash shield.
