Fuel Pressure: Specifications






FUEL PRESSURE SPECIFICATIONS

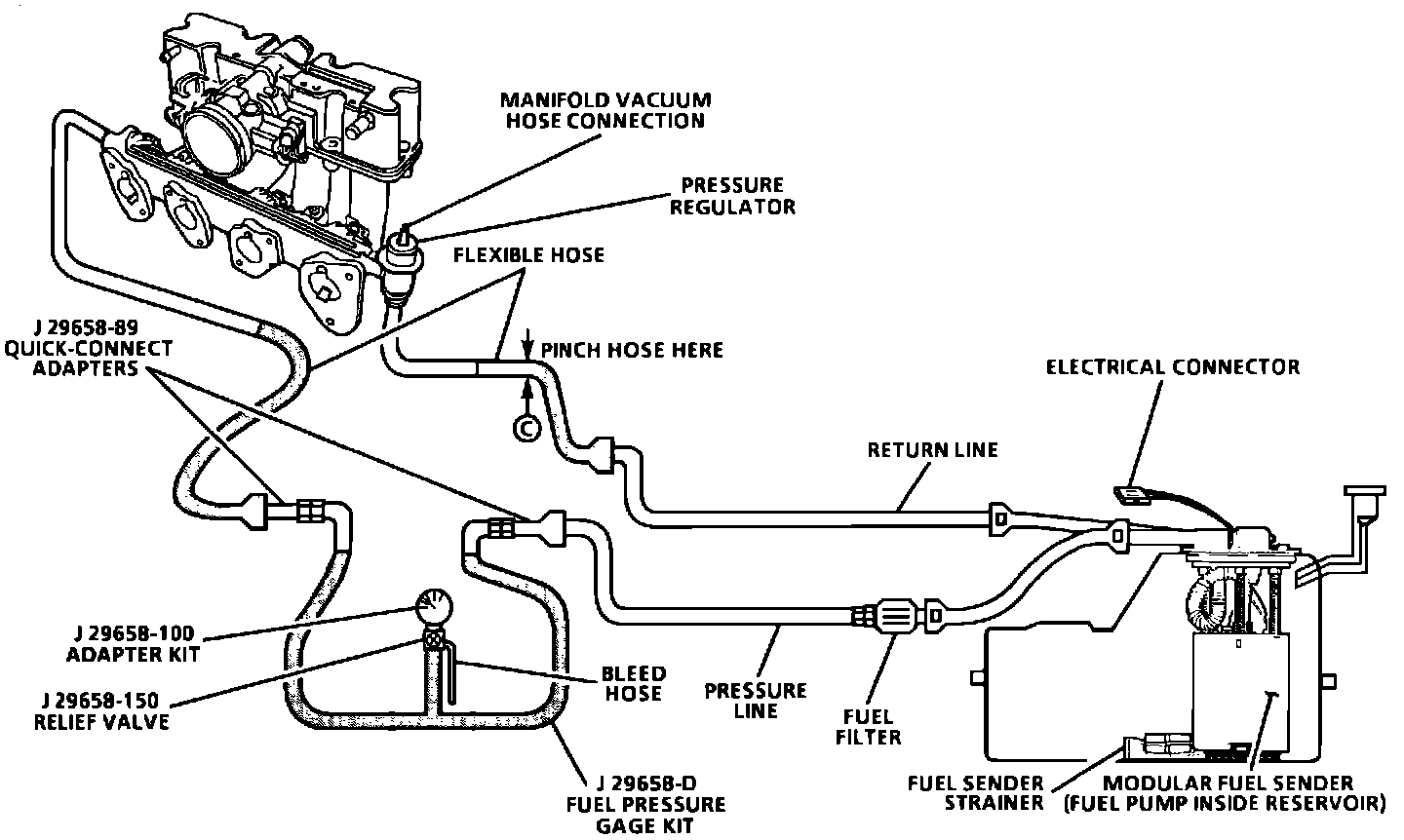

With the ignition "ON" and engine "OFF" (zero vacuum), system fuel pressure should be 284 - 325 kPa (41 - 47 psi). The ignition may have to be cycled "ON" more than once to obtain maximum pressure. When pump stops, pressure may vary slightly then should hold steady.
