Electronic Brake Control Module

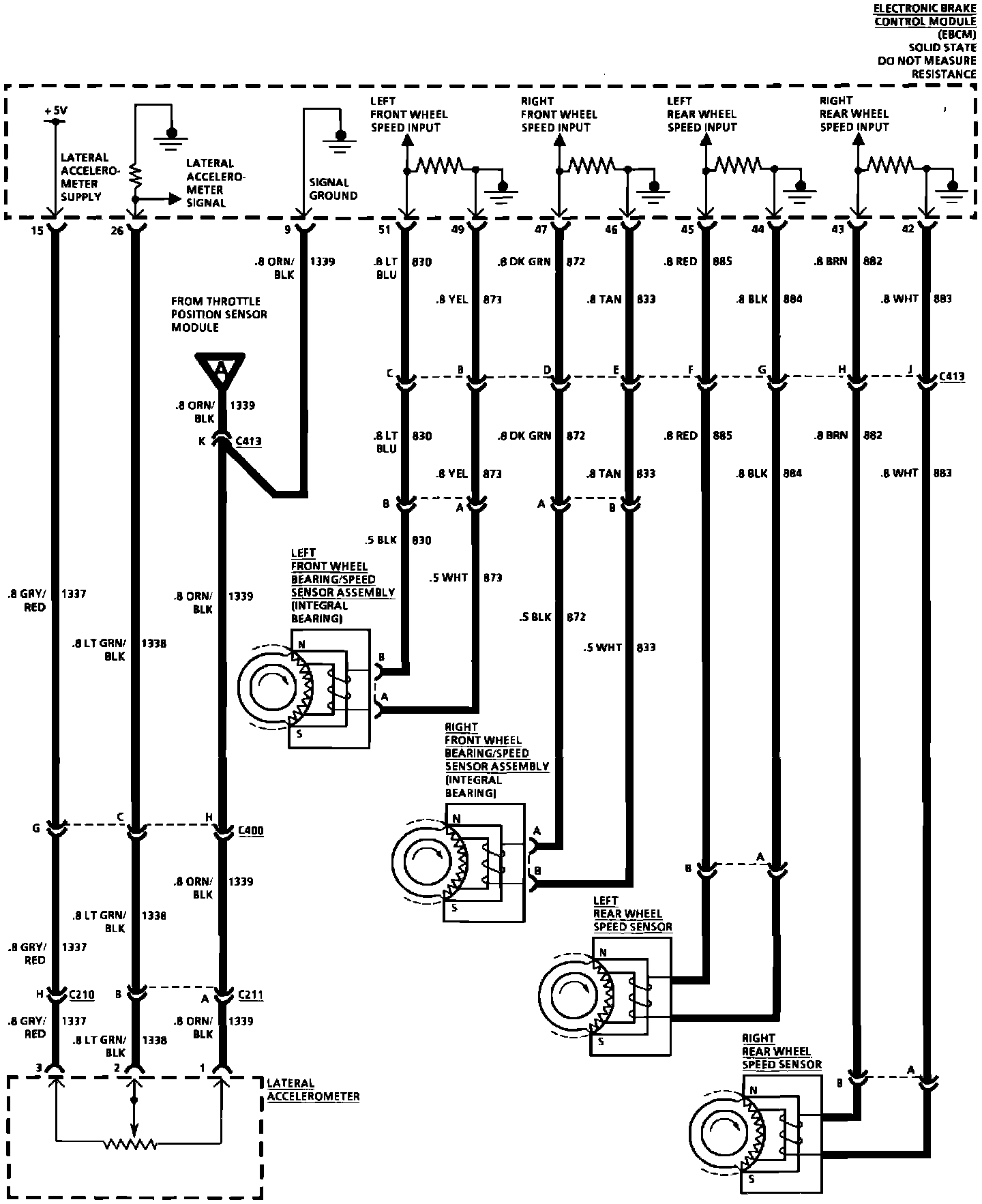

Acceleration Slip Regulation (ASR):

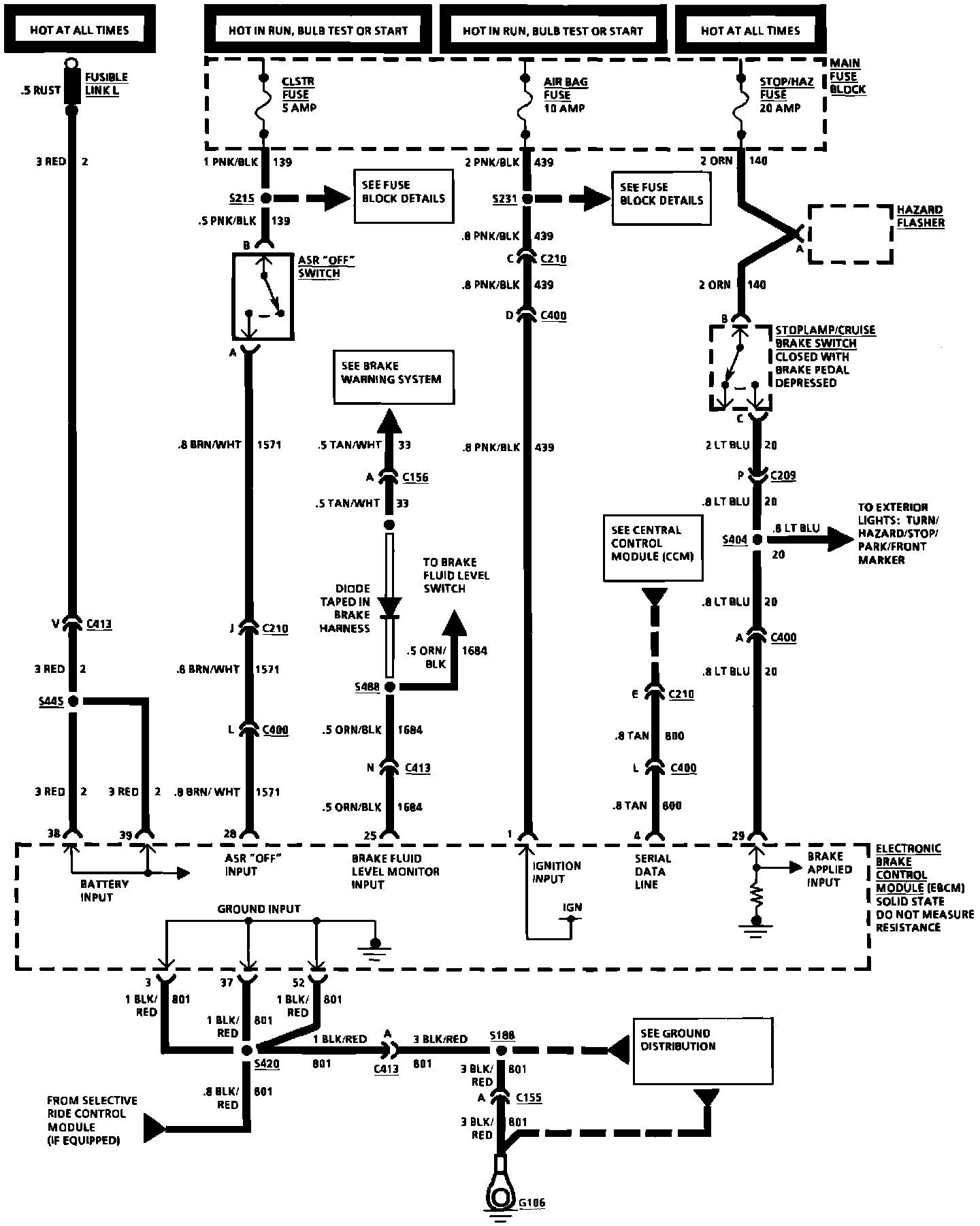

Acceleration Slip Regulation (ASR):
