Compressor Controls

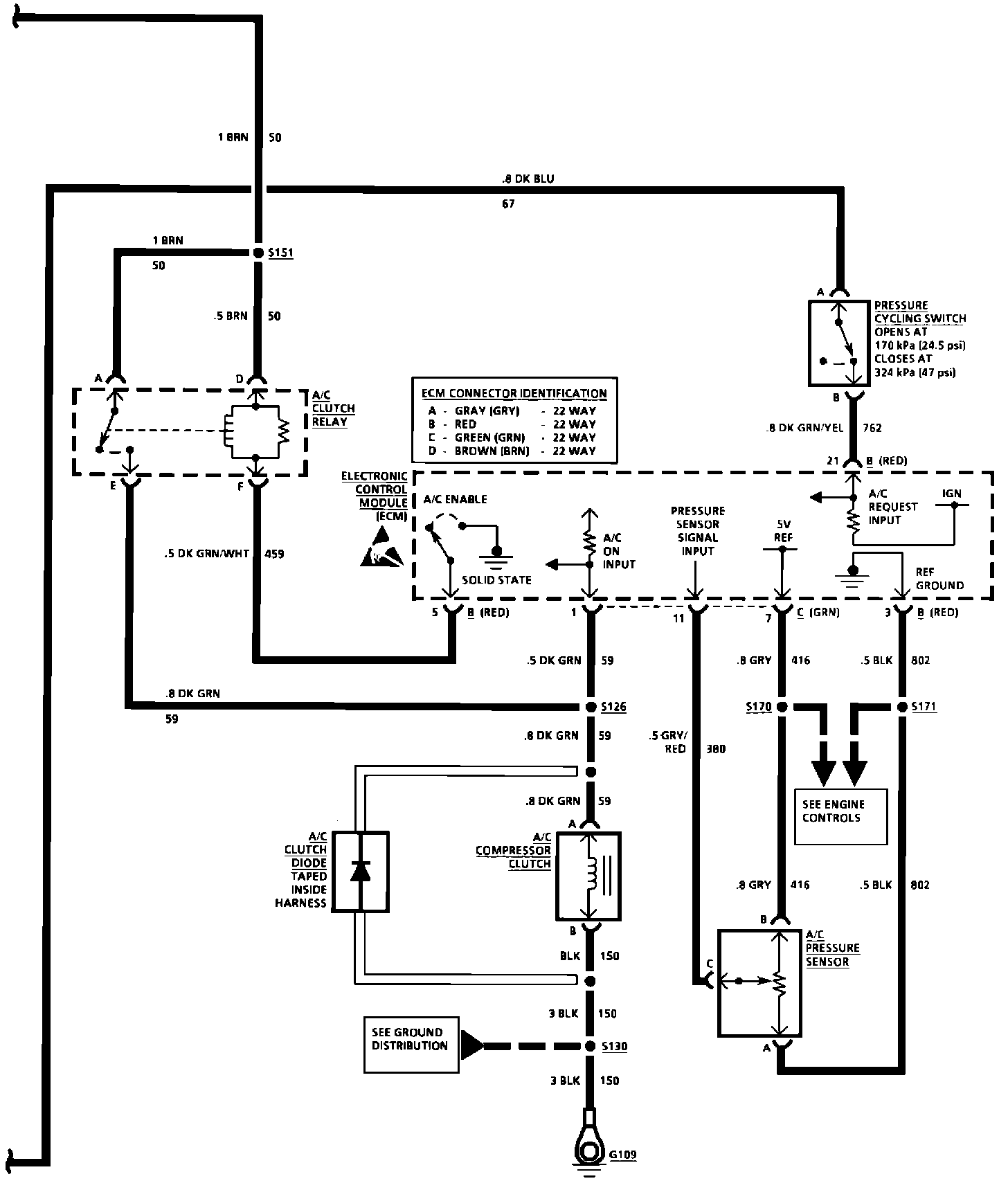

Air Conditioning: Compressor Controls (Electronic):





Air Conditioning: Compressor Controls (Electronic):
