Brake Light Switch: Adjustments

Installing Stoplight Switch:






Switch Adjustment

Note: The stoplamp switch will self-adjust the first time the brake pedal returns to its stop after the switch is installed.

1. Apply the brake pedal.

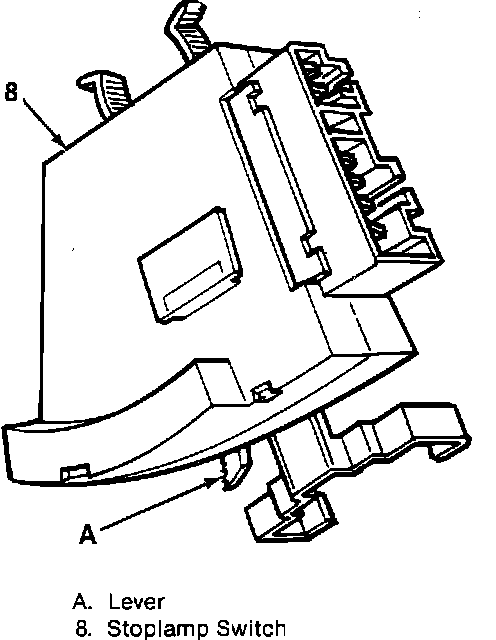

2. Pull the lever (A) back to its stop.
3. Pull the brake pedal against the pedal stop.
