Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1992
>>
K 3500 Truck 4WD V8-350 5.7L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
ECM QDR Check Procedure (Without 4L80-E Transmission)
ECM QDR Check Procedure (Without 4L80-E Transmission)
ECM QDR Check Procedure:

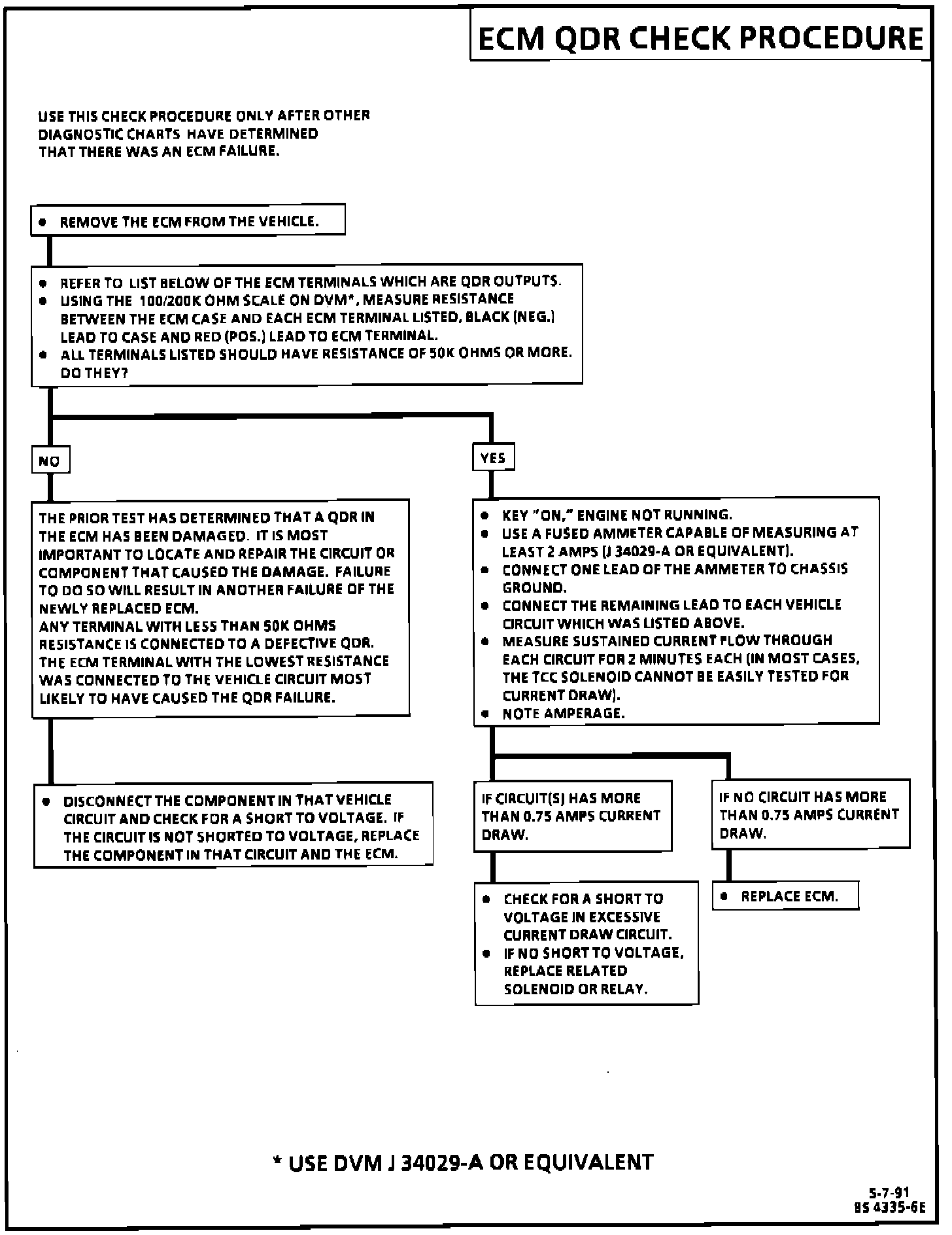

Diagnostic Chart

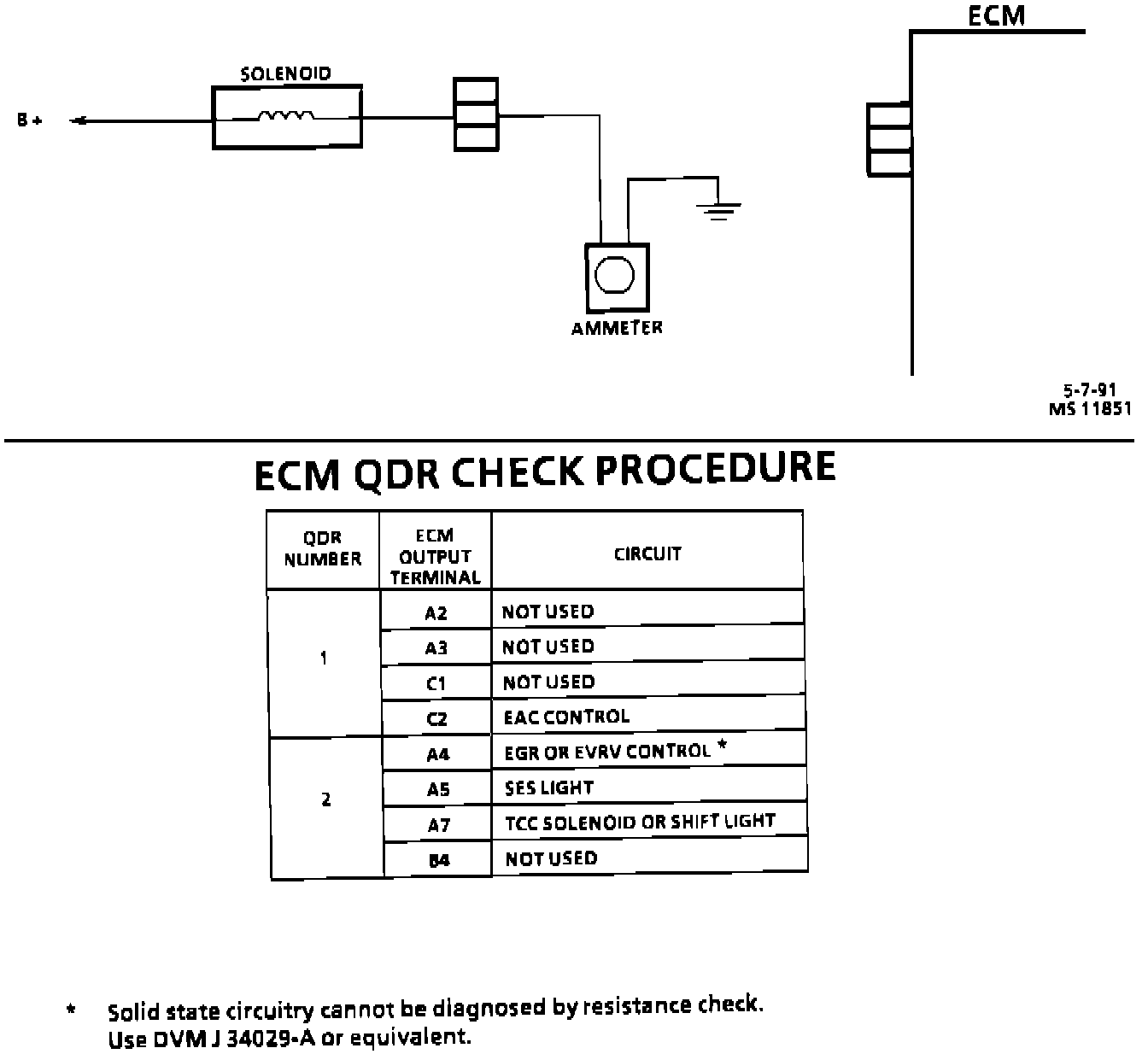

ECM QDR Check Procedure:
Circuit and ECM Output Terminal
