Fiber Glass Rear Fender Paint - Star Shaped Crack
File In Section: 10 - BodyBulletin No.: 66-15-09A
Date: April, 1997
Subject:
Fiber Glass Rear Fender Paint Star Shaped Cracks (Install Protective Liner)
Models:
1988-97 Chevrolet and GMC C/K Models
with RPO E62 or R05
This bulletin is being revised to add 1997 models. Please discard Corporate Bulletin Number 66-15-09 (Section 10 - Body)
Condition
Some customers may report star shaped cracks in the paint on fiber glass rear fenders.
Cause
Star shaped cracks in the paint finish are caused by the impact of rocks flung out of the tire treads against the inside of the fiber glass fender.
Correction
Install protective fender liner. The liner is a special polymer layer with an aluminum foil backing that is applied to the inside of the fenders.
Service Procedure
The inner fender must be clean, dry, and the temperature must be above 45°F. Power washing may be necessary. Any after market undercoating must be removed.
Caution:
To prevent cuts and abrasions on your hands from sharp aluminum foil edges, gloves should be worn during this service procedure.

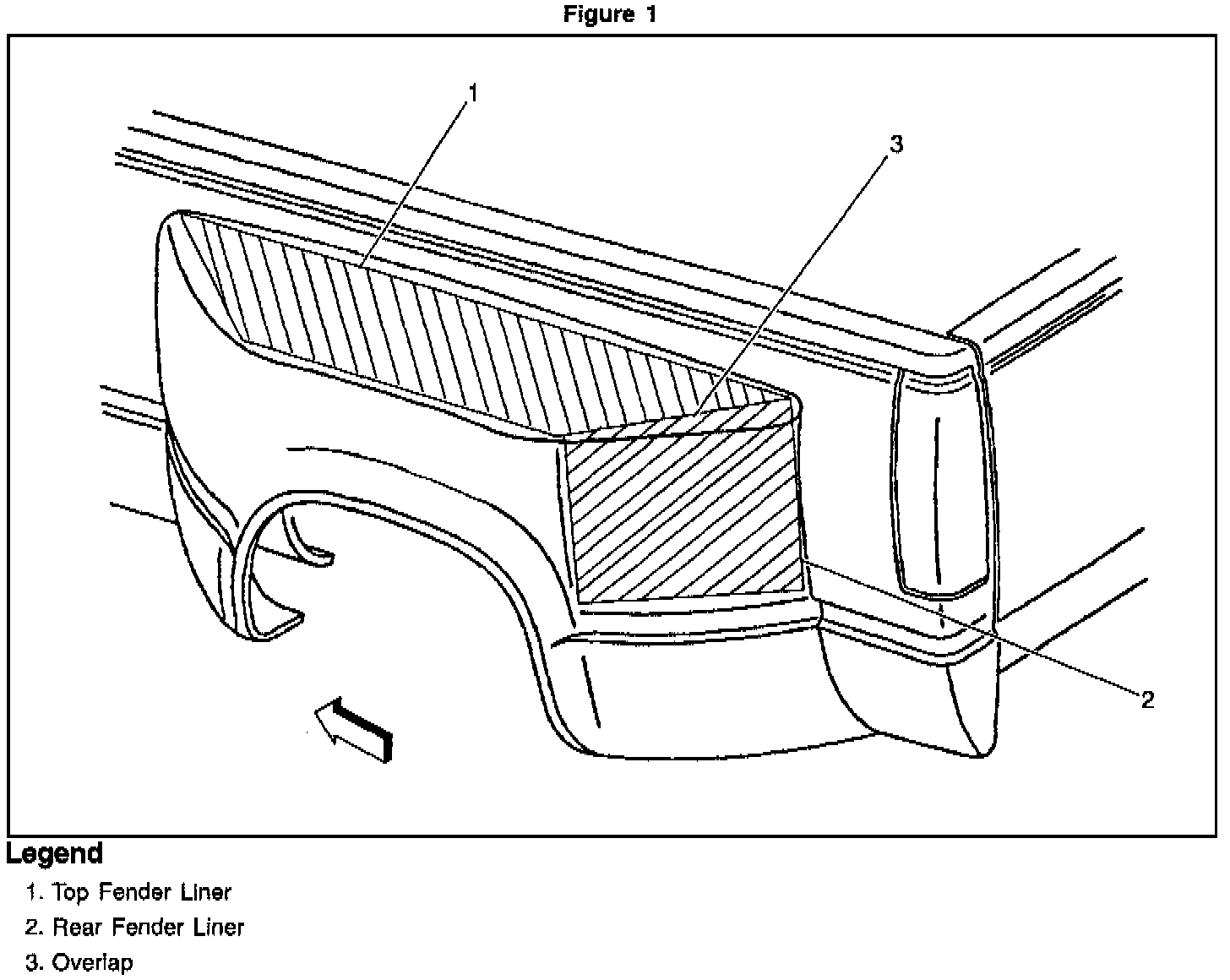

1. Attach the inboard center section of the liner to the inboard center section of the fender first. Remove a small section of the protective wax paper on the inboard center section of the liner to expose the adhesive layer of the fender liner. Using moderate pressure, apply the top fender liner to the inside top of the fender as illustrated (Figure 1). Carefully peel the wax paper from the center of the liner toward the front and rear of the fender attaching the liner as you go. Repeat this process to the opposite fender.
2. Apply the rear fender liner to the inside rear of the fender as illustrated (Figure 1). Take care to overlap the rear liner on the top liner as illustrated. Repeat this process to the opposite fender.
3. Apply moderate pressure to the entire surface of the fender liners to insure good adhesion to the inside of the fenders.
Parts Information
Part quantity reflects the number required to do both fenders on one vehicle.
P/N Description Qty
15741040 Protector-rear 2
fender upper
15741041 Protector-rear 2
fender rear
Parts are currently available from GMSPO.
Warranty Information
For vehicles repaired under warranty, use:
Labor Op Description Labor Time
B8340 Install fender liner, 0.3 hr
right side
B8341 Install fender liner, 0.3 hr
left side
B8342 Install fender liner, 0.5 hr
both sides
