Brake Switch (Cruise Control): Service and Repair

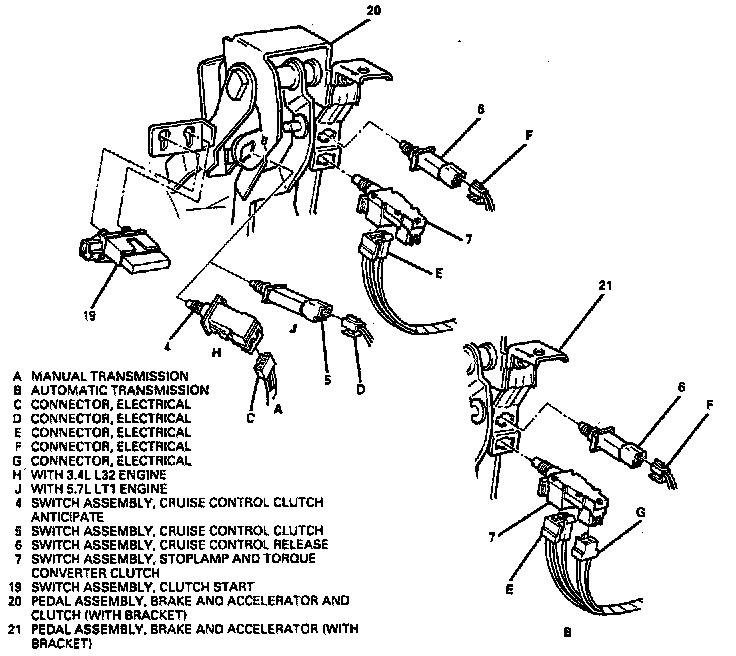

Fig. 36 Exploded View Of Cruise Control Switch Assembly:

1. Remove left hand instrument panel sound insulator, then disconnect electrical connectors.

2. Remove release switch assembly stop lamp and TCC switch assembly and clutch switch or clutch anticipate switch, if equipped from pedal with bracket Fig. 3.

3. Reverse procedure to install. Adjust as outlined.
