Cruise Control Servo Cable: Service and Repair

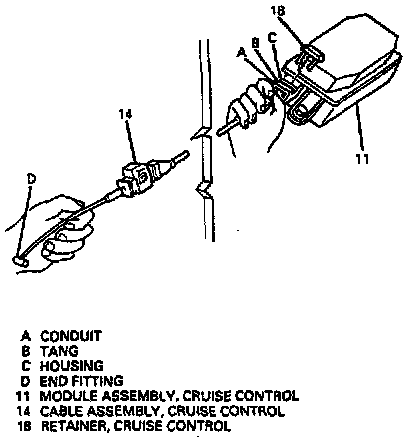

Fig. 40 Cruise Control Cable Retainer Removal:

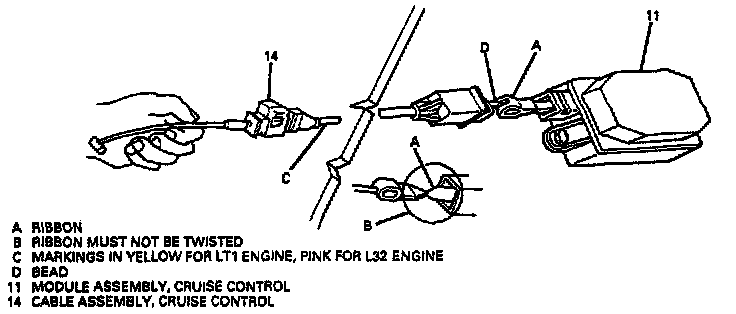

Fig. 41 Cruise Control Cable Removal:

The cable is connected between the cruise control module and throttle body lever.


1. Remove cable and conduit from engine bracket, Fig. 40

2. Remove cable end fitting from throttle body lever stud.

3. Remove cruise control retainer at module.

4. Remove cable from module as follows:

a. Compress conduit tangs, and pull out of module housing.

b. Disconnect cable bead from cruise motor band end fitting on module, Fig. 41.

c. Note routing and remove cable

5. Reverse procedure to install noting the following:

a. Ribbon must not be twisted; slide cable conduit fitting over ribbon and snap into module housing ensuring both tangs are engaged.

b. Adjust cable as outlined.
