Torque Specifications

Cylinder Head Bolts

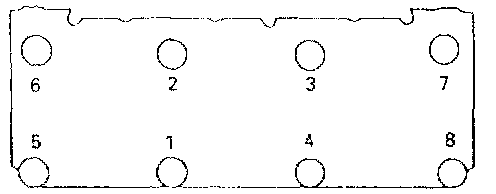

Fig. 7 - Cylinder Head Tightening Sequence:






In the sequence shown in figure 7:

^ Torque bolts to 41 ft. lbs.
^ Turn bolts an additional 90° (1/4 turn)
