Antitheft - Revised Diagnostic Chart, Symptom Table
File In Section: 8 Chassis/Body ElectricalBulletin No.: 73-81-27
Date: April, 1997
SERVICE MANUAL UPDATE
Subject:
Sections 8A-133/9D - Revised Pass-Key(R) II, Universal
Theft Deterrent System Symptom Table
Models:
1993-95 Chevrolet Camaro
1993-95 Pontiac Firebird

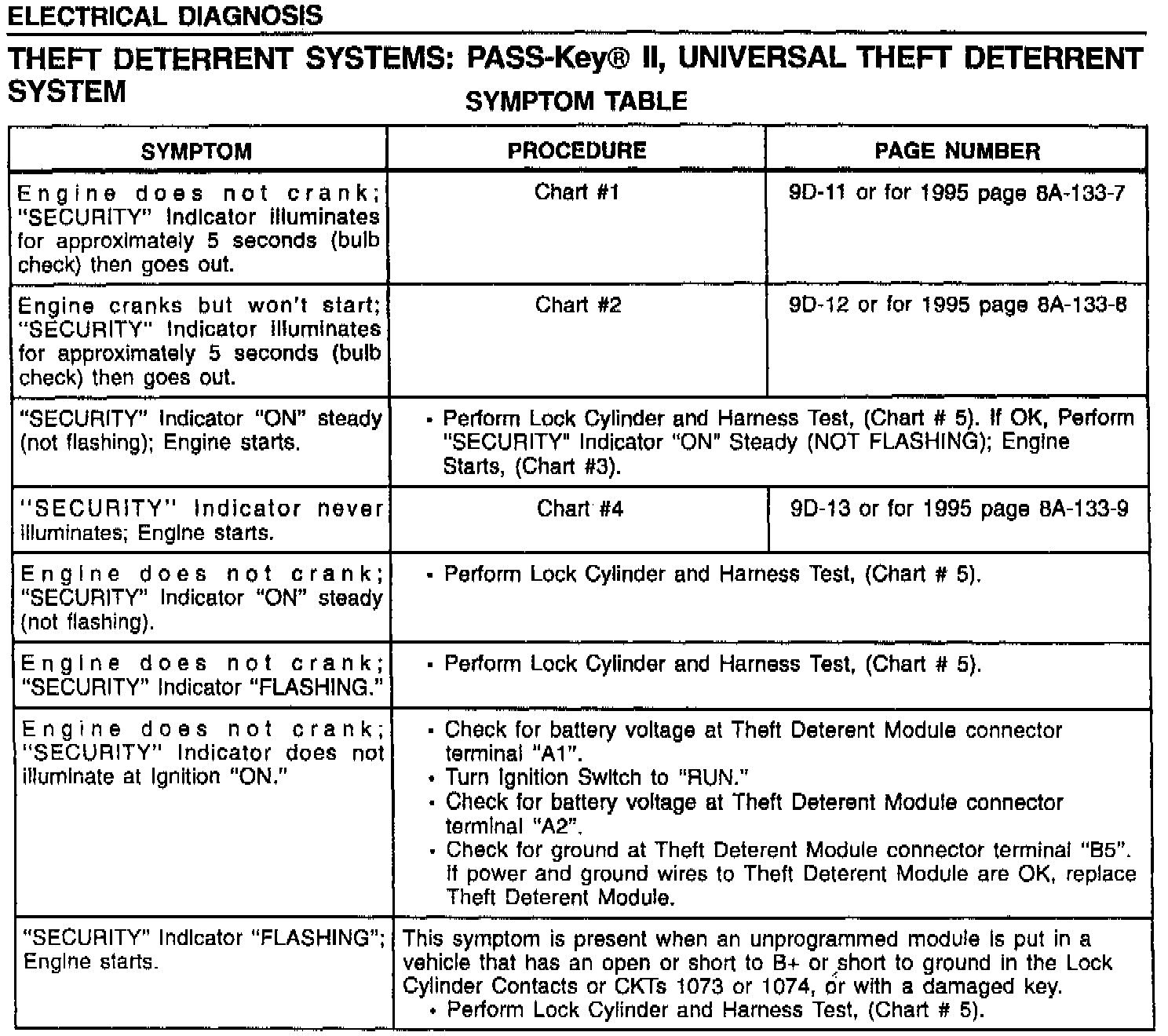

This bulletin is being issued to revise the Pass-Key(R) II, Universal Theft Deterrent System Symptom Table on pages 9D-10 (1993-94) and 8A-133-6 (1995) in the Service Manual.
The Symptom Table has been changed to re-order procedures when diagnosing the condition:
SECURITY Indicator ON steady (not flashing); engine starts. Diagnosing this condition should start with Chart # 5 first to diagnose the Lock Cylinder and wiring. If OK, go to Chart # 3 to check the Theft Deterrent Module and wiring. These steps will save time by accessing easy to reach components first.
Please use this page to replace the existing page in the affected Service Manuals.
