Automatic Transmission/Transaxle: Locations

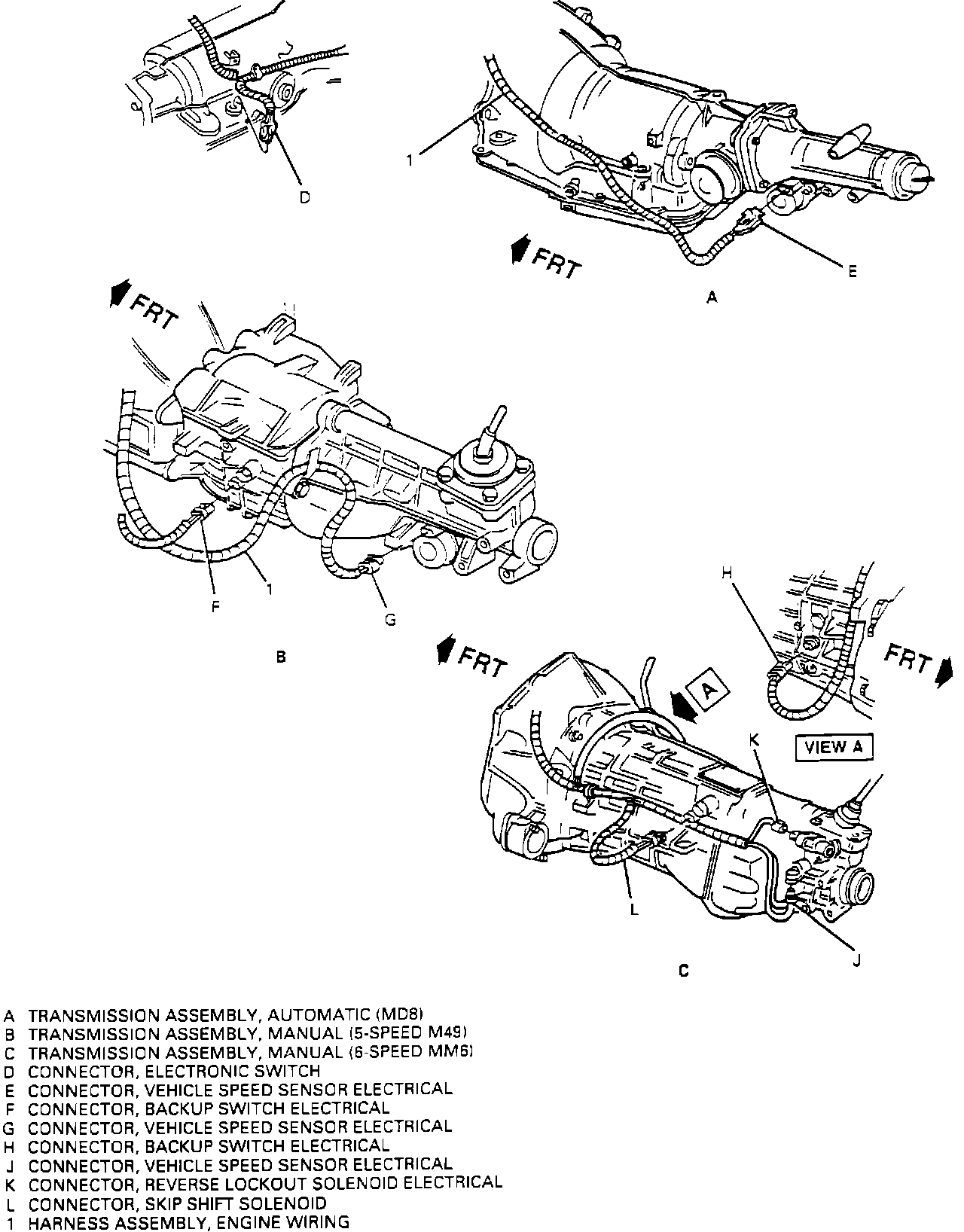

Transmission Engine Wiring Harness:
A TRANSMISSION ASSEMBLY, AUTOMATIC (MD8)
B TRANSMISSION ASSEMBLY, MANUAL (5-SPEED M49)
C TRANSMISSION ASSEMBLY, MANUAL (6-SPEED MM6)
D CONNECTOR, ELECTRONIC SWITCH
E CONNECTOR, VEHICLE SPEED SENSOR ELECTRICAL
F CONNECTOR, BACKUP SWITCH ELECTRICAL
G CONNECTOR, VEHICLE SPEED SENSOR ELECTRICAL
H CONNECTOR, BACKUP SWITCH ELECTRICAL
J CONNECTOR, VEHICLE SPEED SENSOR ELECTRICAL
K CONNECTOR, REVERSE LOCKOUT SOLENOID ELECTRICAL
L CONNECTOR, SKIP SHIFT SOLENOID
1 HARNESS ASSEMBLY, ENGINE WIRING
