Door Window Regulator Counterbalance Arm Channel Assy..

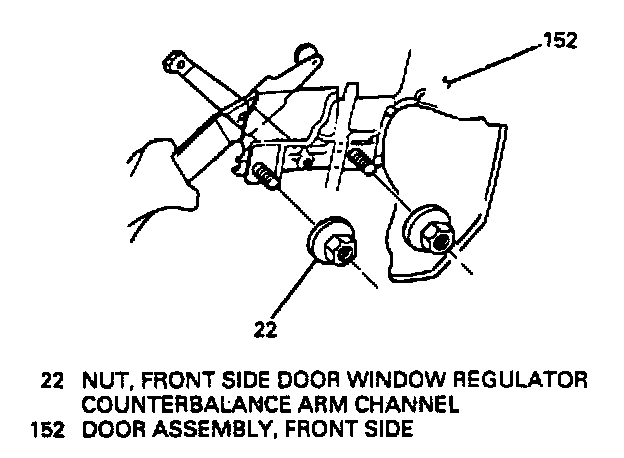

Removing Front Side Door Window Regulator Counterbalance Arm Channel Nuts (Typical):

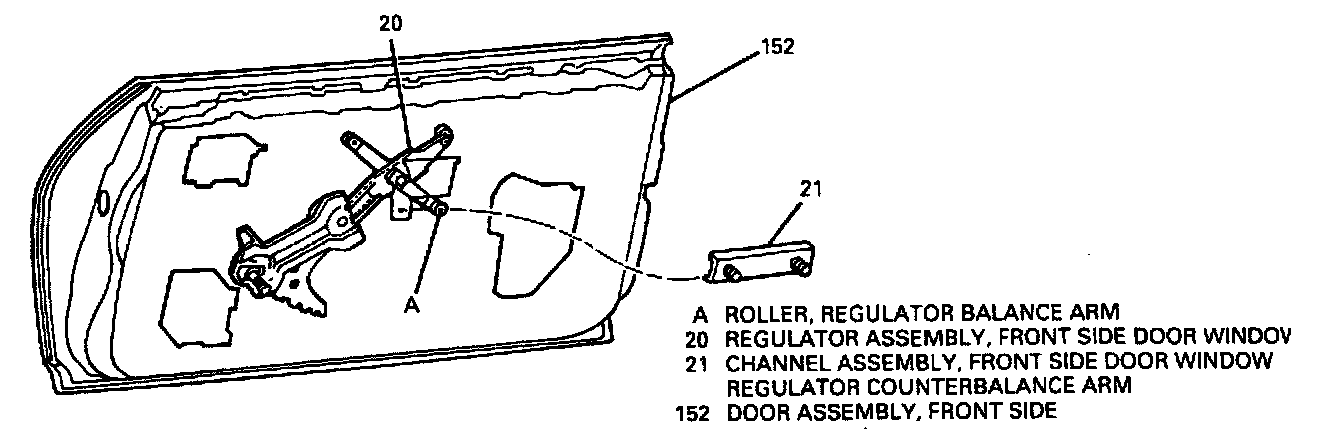

Removing Front Side Door Window Regulator Counterbalance Arm Channel Assembly (Typical):

REMOVE OR DISCONNECT
1. Raise window.
2. Front side door trim assembly.
3. Front side door water deflector as needed.
4. Nuts (22) attaching channel assembly (21) to door inner panel.
5. Channel assembly (21) from window regulator balance arm roller.
6. Channel assembly (21) through access hole.

INSTALL OR CONNECT
1. Channel assembly (21) through access hole to window regulator balance arm roller.
2. Channel assembly (21) to door inner panel.
3. Tighten nuts (22) to 10 N.m (89 lb in).
4. Front side door water deflector.
5. Front side door trim assembly.
