Air Injection Pump Relay
>>
Locations
Air Injection Pump Relay: Locations

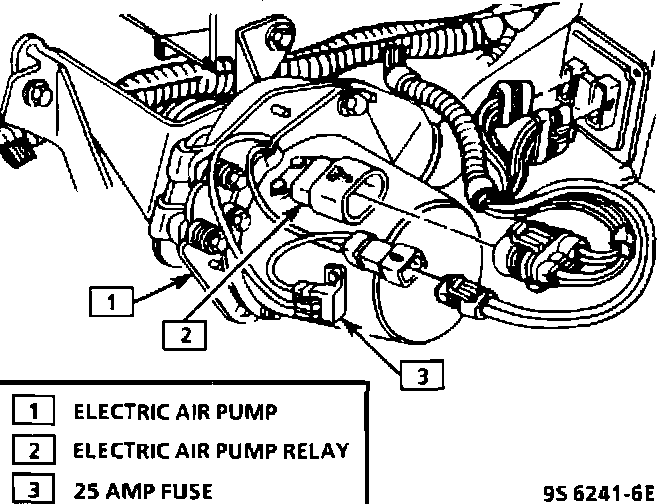

Electric Air Pump And Relay Location:
The air pump relay is mounted to the top of the air pump motor.
