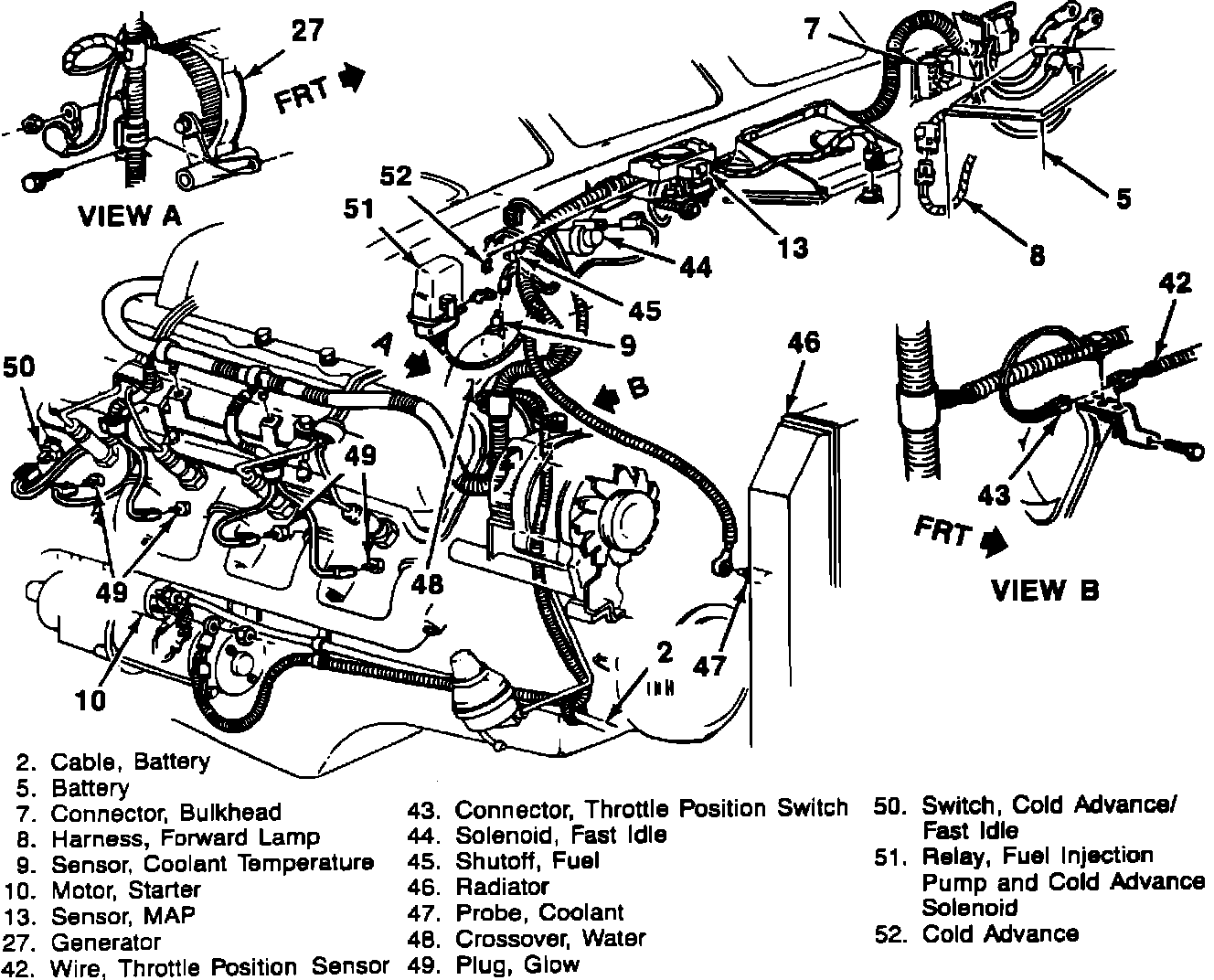

Right Side View

Pictorial View:

2. Cable, Battery
5. Battery
7. Connector, Bulkhead
8. Harness, Forward Lamp
9. Sensor, Coolant Temperature
10. Motor, Starter
13. Sensor, MAP
27. Generator
42. Wire, Throttle Position Sensor
43. Connector, Throttle Position Switch
44. Solenoid, Fast Idle
46. Radiator
47. Probe, Coolant
48. Crossover, Water
49. Plug, Glow
50. Switch, Cold Advance/Fast Idle
51. Relay, Fuel Injection Pump and Cold Advance Solenoid
52. Cold Advance
