Transmission Control Module W/Body Builder's Junction Block
Transmission Control Module W/Body Builder's Junction Block

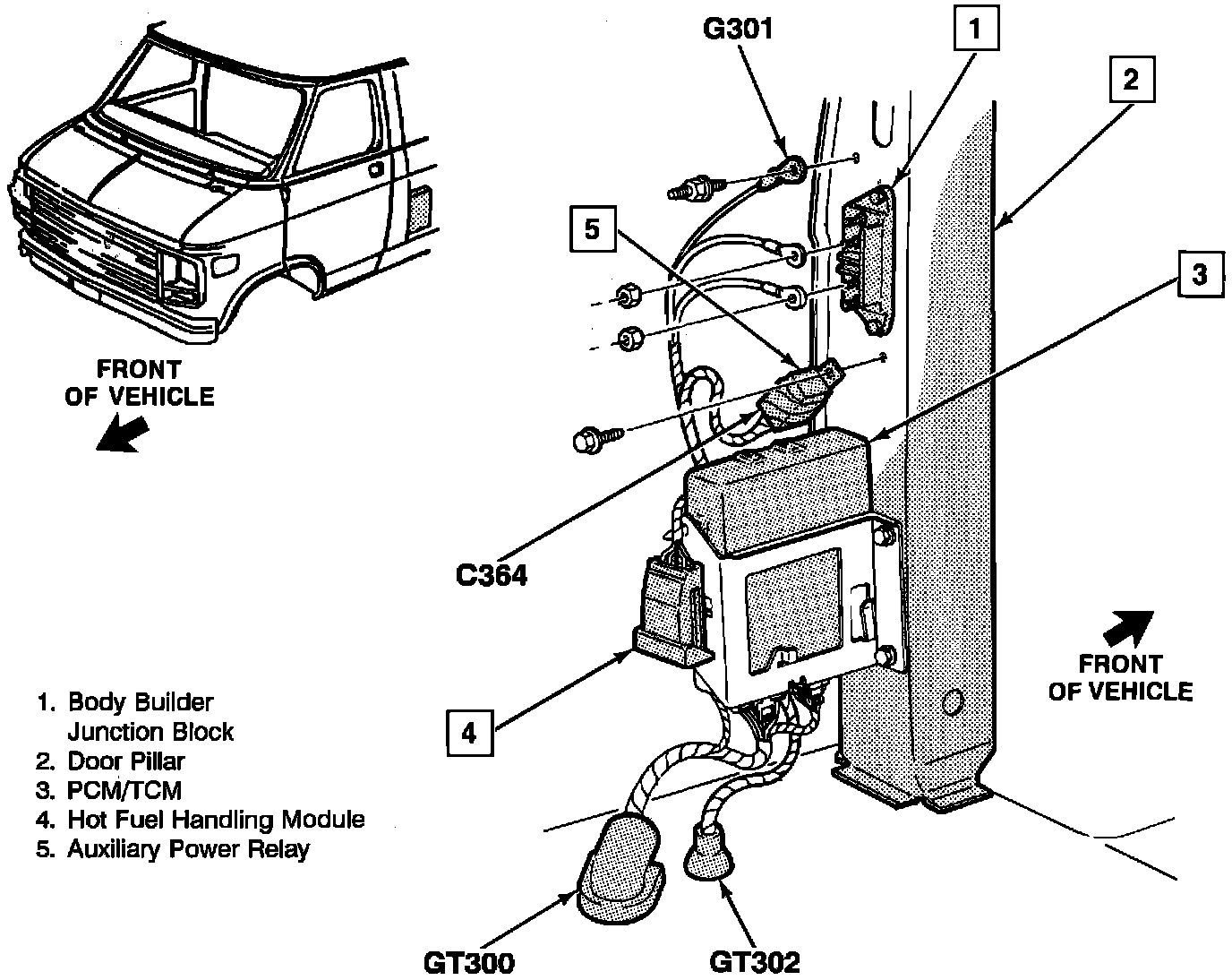

PCM/TCM And Wiring W/Body Builder Junction Block:
