With A/C

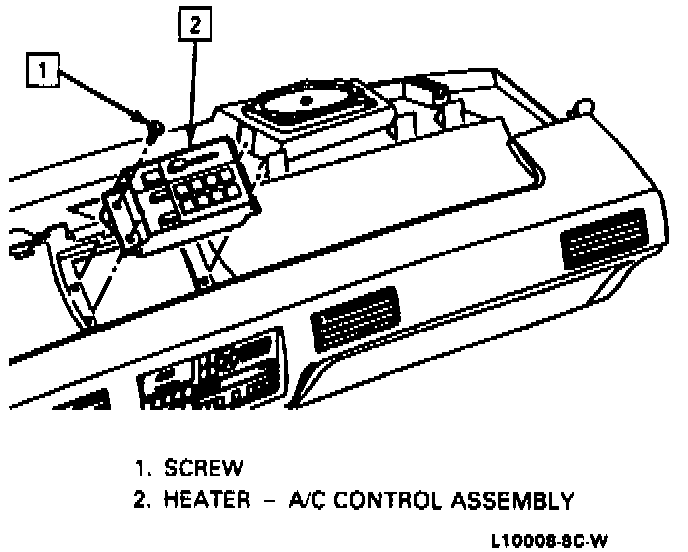

A/C Control Assembly:

REMOVE OR DISCONNECT
1. Right instrument panel trim plate.
2. Bolts.
3. Control assembly.
4. Connectors.


INSTALL OR CONNECT
1. Connectors.
2. Control assembly.
3. Bolts.
4. Right instrument panel trim plate.
