Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chevrolet
>>
1994
>>
Astro Van M V6-262 4.3L VIN Z
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Fuse Block
>>
Locations
>>
Fuse Block View
>>
Rear View
Rear View

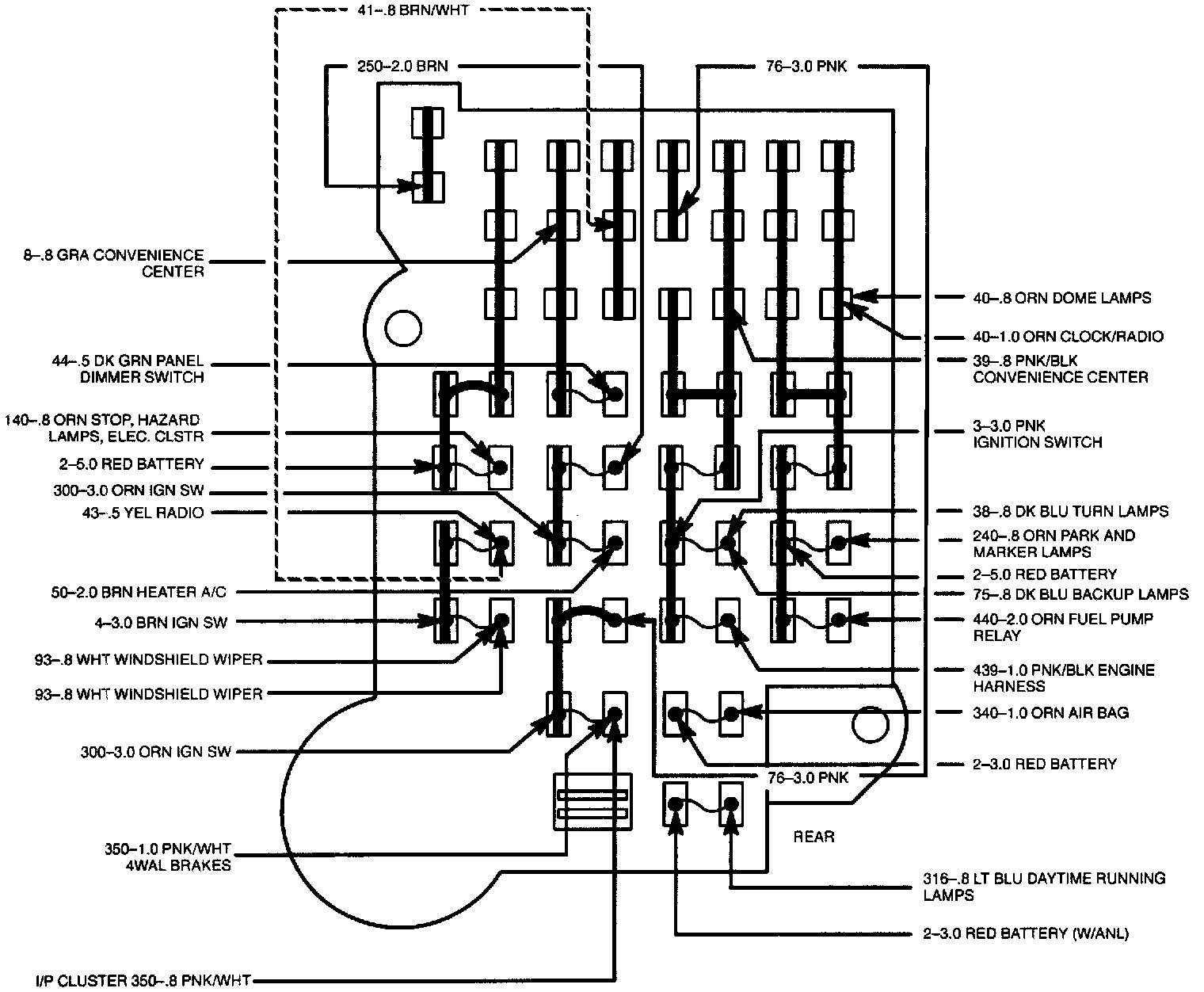

Fuse Block Details: Rear View:
