Front View of Fuse Block (Description)

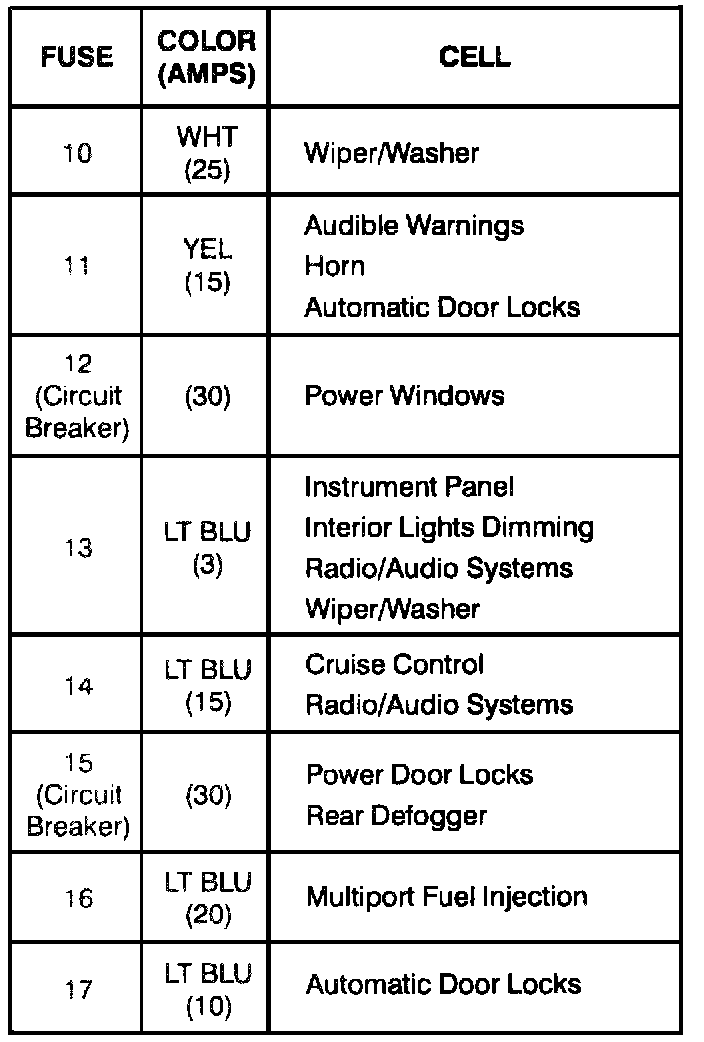

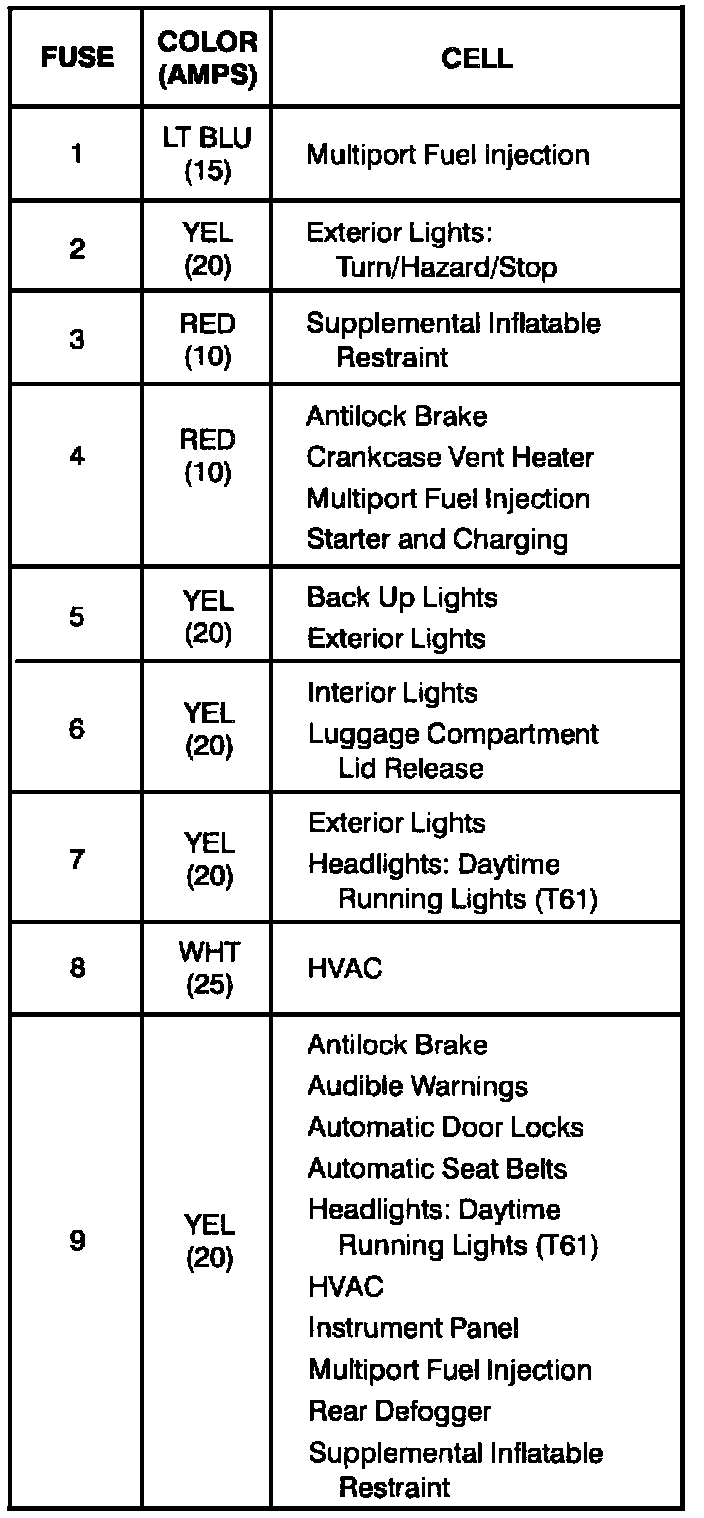

Fuse Block Details: Description:



Fuse Block Details: Description:
