Diagnosis by Symptom - AM Radio
>>
Radio Does Not Appear to Work (No Display Lights, No Sound)
Radio Does Not Appear to Work (No Display Lights, No Sound)

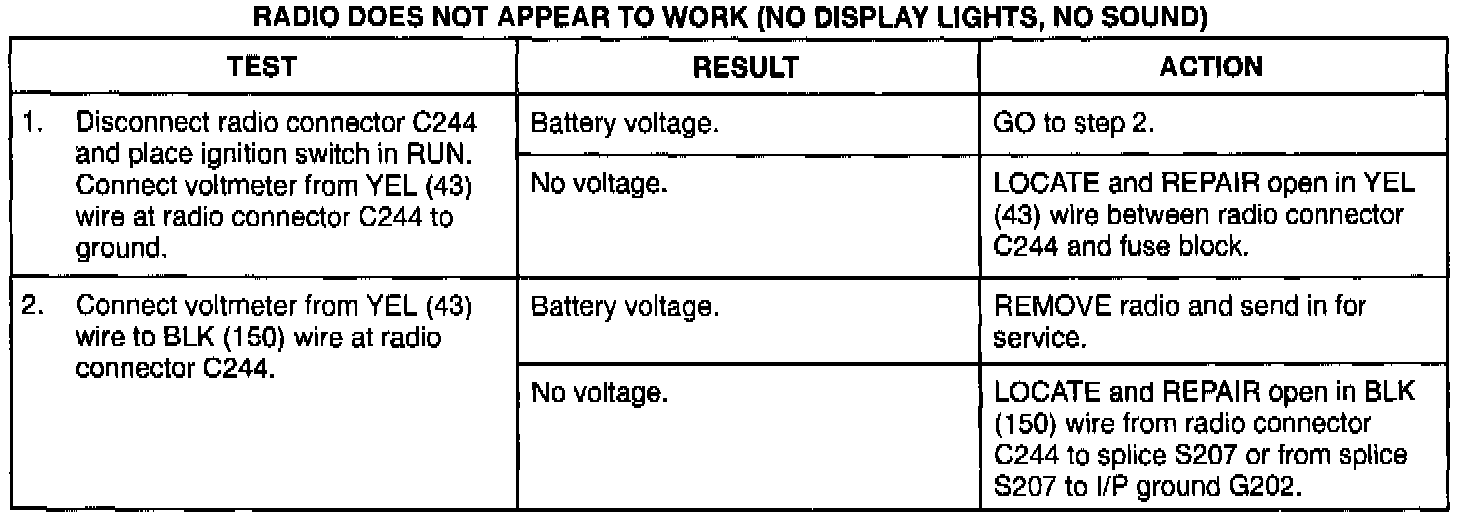

Diagnostic Chart:
