Theft Deterrent Module Assembly

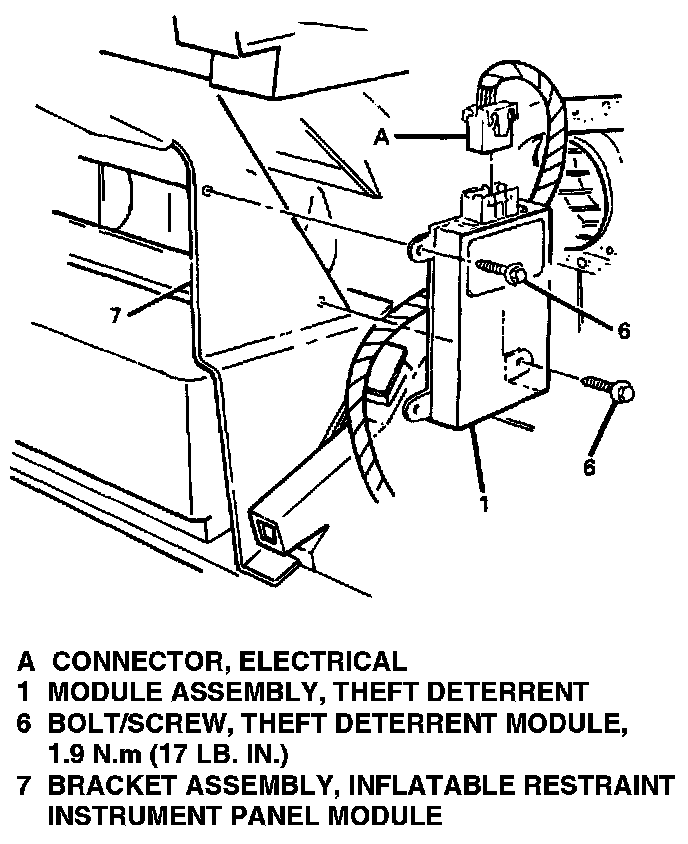

Theft Deterrent Module Assembly:

Remove or Disconnect

1. Instrument panel assembly.
2. Bolts/screws (6).
3. Theft deterrent module assembly (1) from inflatable restraint bracket assembly (7).
4. Electrical connector.

Install or Connect

1. Electrical connector.
2. Theft deterrent module assembly (1) to inflatable restraint bracket assembly (7).
3. Bolts/screws (6) by first securing lower right bolt/screw (6) and then securing upper left bolt/screw (6).

Tighten
^ Bolts/screws (6) to 1.9 Nm (17 lb. in.).

4. Instrument panel assembly.
