Install or Connect

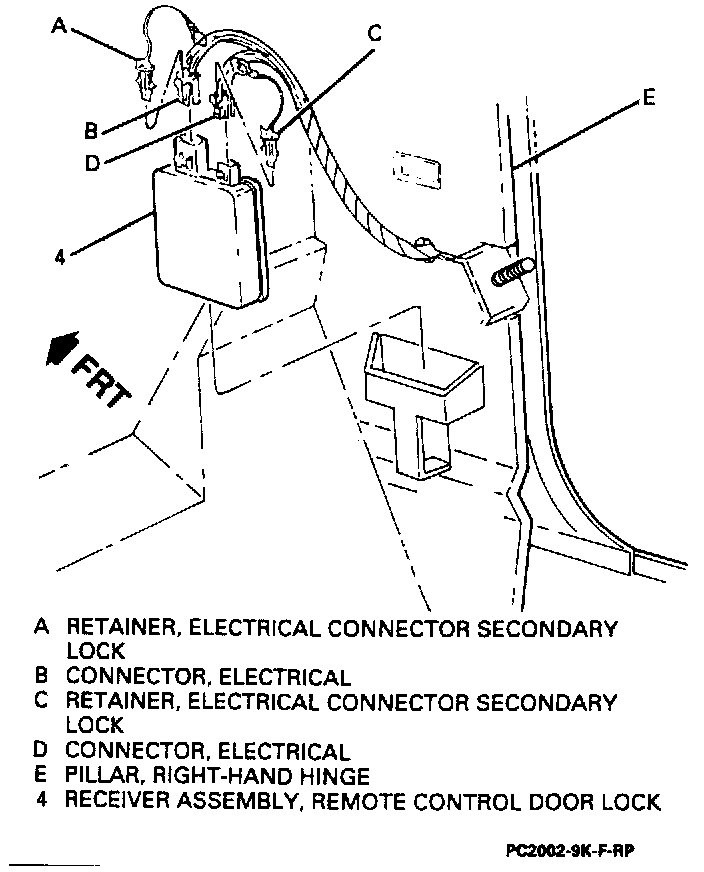

Electrical connectors to receiver assembly (4).

^ Connector should snap into place.
^ Check for positive connection by tugging on connector, not wire.

2. Electrical connector secondary lock retainers to electrical connectors.
3. Receiver assembly (4) to pocket on hinge pillar.
4. Right-band body hinge pillar trim panel.
5. Body hinge pillar trim bolts/screws.

Tighten

^ Body binge pillar trim bolts/screws to 1.3 N.m (12 lb. in.).

6. If programming the system is necessary, refer to "Programming Receiver Assembly".
