PASS Key II Security System - DTC 46 Revision

File In Section: 6E - Engine Fuel & Emissions

Bulletin No.: 61-63-14

Date: November, 1996

SERVICE MANUAL UPDATE

Subject:

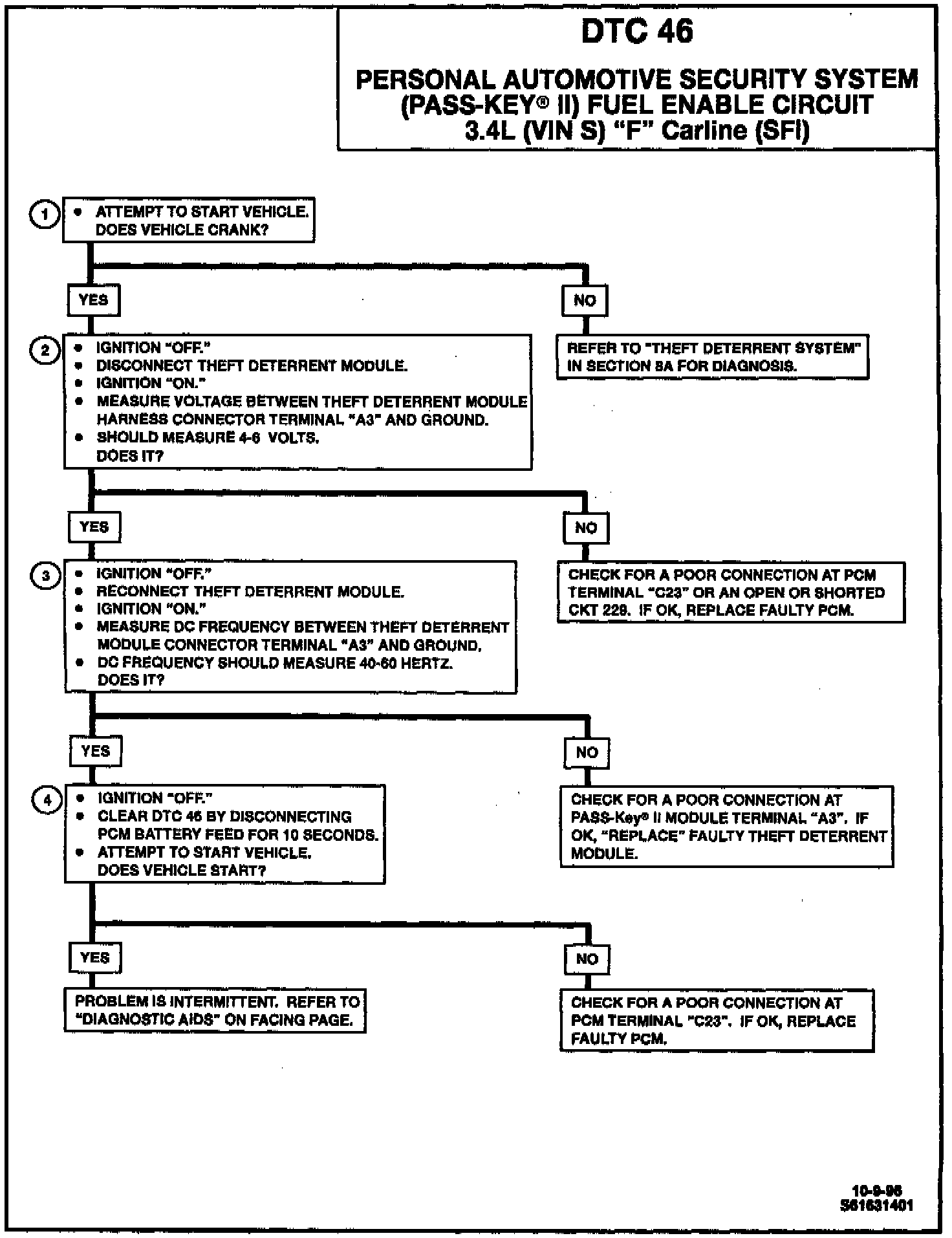

Section 6E 3 - Driveability and Emissions - Revised DTC 46 Personal Automotive Security System Circuit

Models:
1994 Pontiac Firebird
1994 Chevrolet Camaro with 3.4L Engine (VIN S - RPO L32)

This bulletin is being issued to replace the DTC 46 Personal Automotive Security System (Pass Key� II) Circuit. The scan tool information referred to in the DTC 46 chart is not available for this application.





The DTC 46 chart has been revised to allow diagnosis of DTC 46.
