Convertible

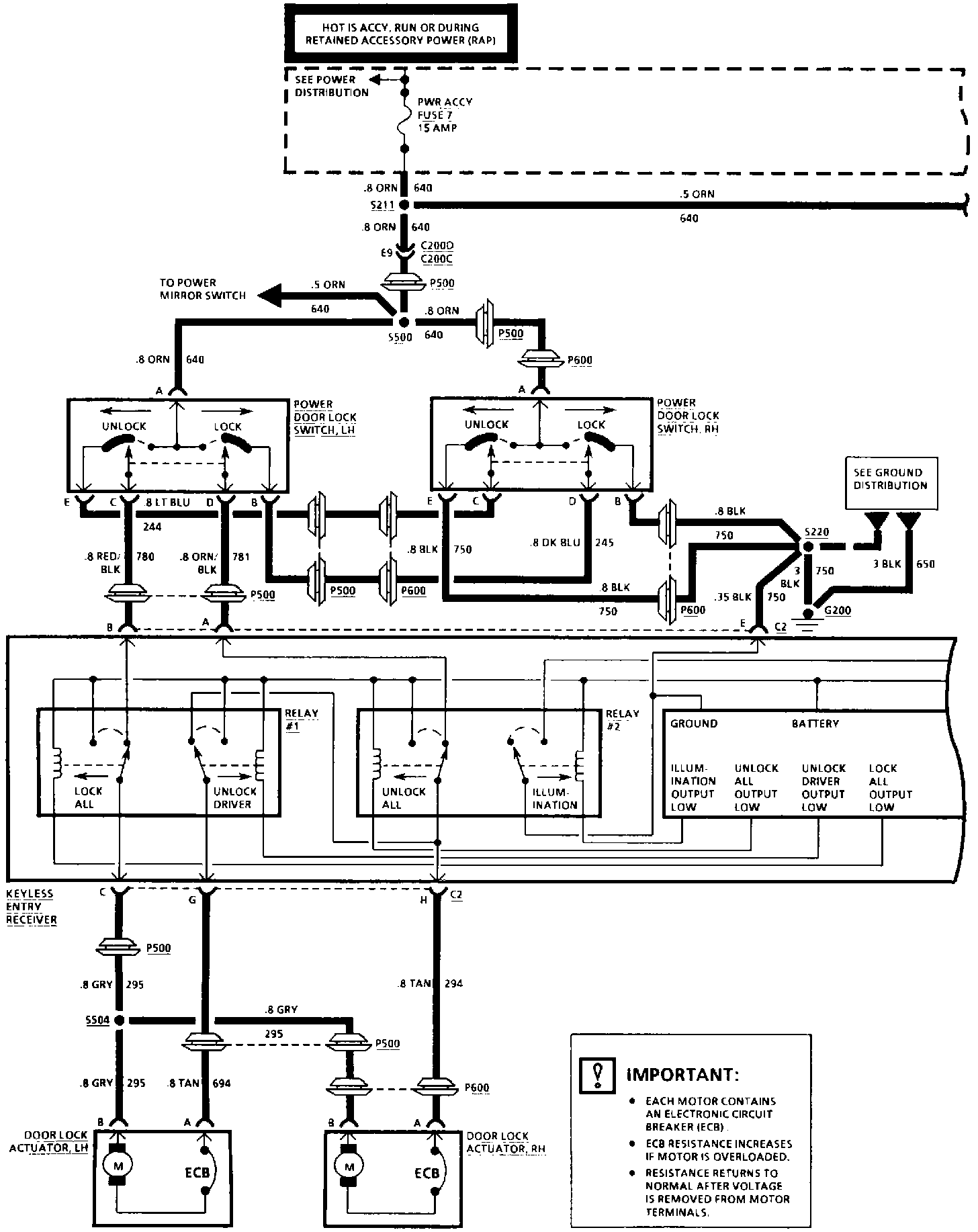

Keyless Entry: AUO (CONVERTIBLE) (Part 1 Of 2):



Keyless Entry: AUO (CONVERTIBLE) (Part 2 Of 2):
