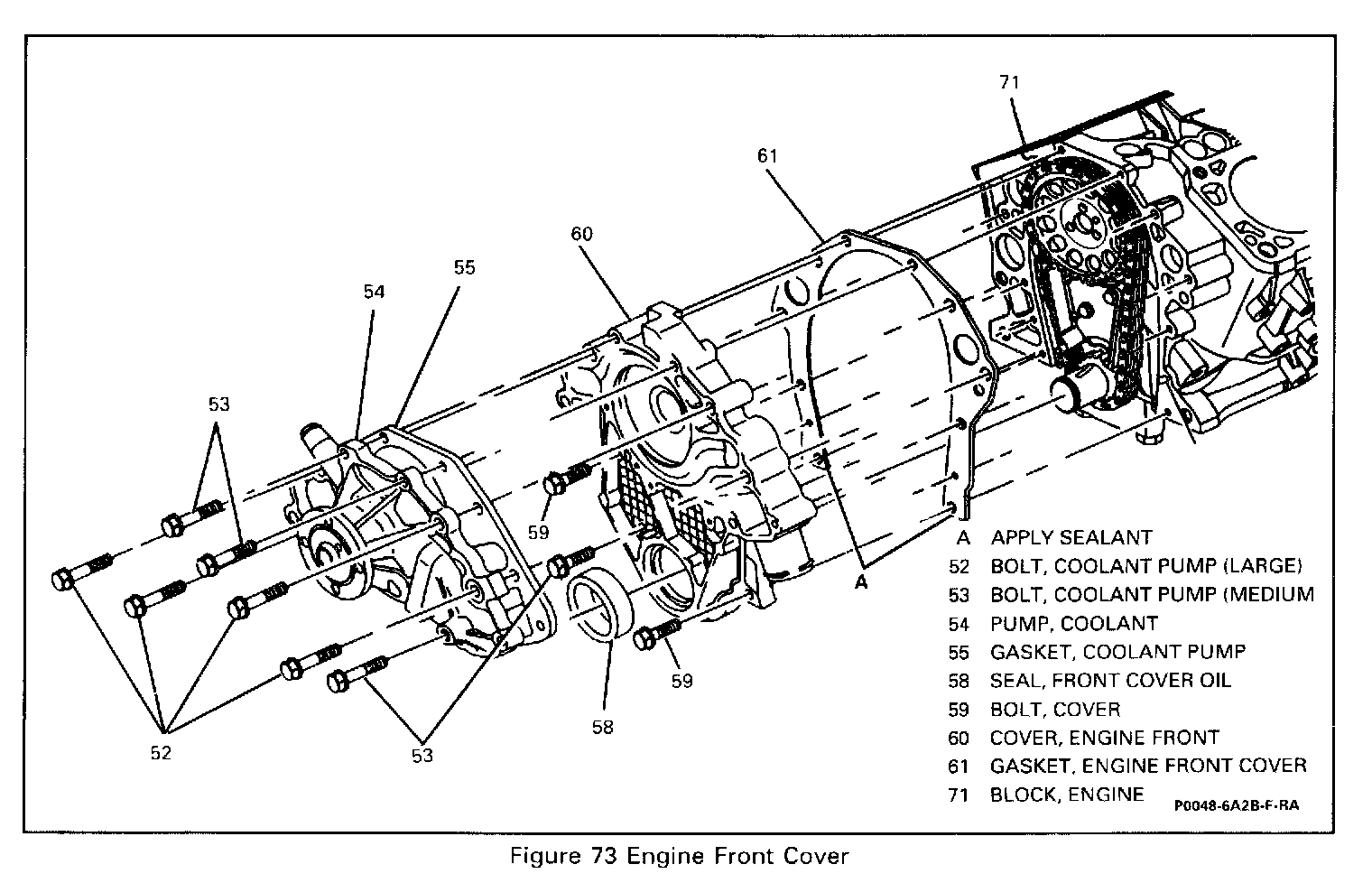

Engine Front Cover

ENGINE FRONT COVER

Install or Connect
1. Front cover gasket (61).
- Uniformly coat both sides of the lower tabs of the front cover gasket (61) with sealer GM p/n 1052080.

2. Front cover (60).
3. Front cover bolts (59).
- Tighten Bolts (59) to 21 N.m (15 lb. ft.).
